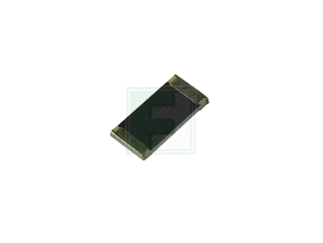

WR06 Series 0603 15 kΩ ±1% 0.1 W ±100 ppm/°C SMT Thick Film Chip Resistor
| Size Code | 0603 |
| Technology | METAL GLAZE/THICK FILM |
| Construction | Rectangular |
| Package Style (Meter) | SMT |
| Resistor Type | FIXED RESISTOR |
| Tolerance (%) | 1 |
| J-STD-609 Code | e3 |
| Packing Method | TR, PAPER, 7 INCH |
| Terminal Shape | WRAPAROUND |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier |
| Mounting Feature | SURFACE MOUNT |
| Resistance (ohm) | 15000 |
| Additional Feature | FLAME PROOF, LASER TRIMMABLE |
| Package Width (mm) | 0.8 |
| Number of Terminals | 2 |
| Package Height (mm) | 0.45 |
| Package Length (mm) | 1.6 |
| Working Voltage (V) | 75 |
| Rated Temperature (Cel) | 70 |
| Operating Temperature-Max (Cel) | 155 |
| Operating Temperature-Min (Cel) | -55 |
| Rated Power Dissipation (P) (W) | 0.1 |
| Temperature Coefficient (ppm/Cel) | 100 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Walsin Technology Corporation WR06X1502FTL in the documentation section.
WR06 Series 0603 15 kΩ ±1% 0.1 W ±100 ppm/°C SMT Thick Film Chip Resistor
As a typical representative of the subcategory Passives, WR06X1502FTL is used to control the level of current and voltage in electrical circuits. Its WR06 Series 0603 15 kΩ ±1% 0.1 W ±100 ppm/°C SMT Thick Film Chip Resistor ensures stable resistance, which is critical for precise measurements and component protection.
WR06X1502FTL from the category Passives by manufacturer Walsin Technology Corporation provides precise current limitation in the scheme. Thanks to its WR06 Series 0603 15 kΩ ±1% 0.1 W ±100 ppm/°C SMT Thick Film Chip Resistor, it contributes to stable operation of electronic devices, preventing overloads and voltage fluctuations.
