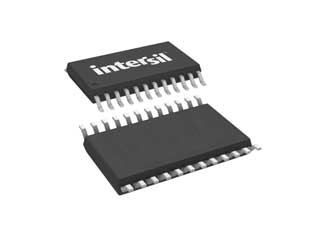

ISL83387EIVZ-T
Availability
Design risk
Price trend
Lead time
±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transceivers with Enhanced Automatic Powerdown and a Separate Logic Supply
| Technology | CMOS |
| Width (mm) | 4.4 |
| Length (mm) | 7.8 |
| JESD-30 Code | R-PDSO-G24 |
| Package Code | TSSOP |
| Package Shape | RECTANGULAR |
| Package Style | TSSOP-24 |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e3 |
| Terminal Finish | Matte Tin (Sn) - annealed |
| Interface IC Type | LINE TRANSCEIVER |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | DUAL |
| Interface Standard | EIA-232; TIA-232; V.24; V.28 |
| Differential Output | NO |
| Number of Functions | 3 |
| Number of Terminals | 24 |
| Terminal Pitch (mm) | 0.65 |
| Driver Number of Bits | 3 |
| Input Characteristics | SCHMITT TRIGGER |
| Package Body Material | PLASTIC/EPOXY |
| Seated Height-Max (mm) | 1.2 |
| Supply Voltage-Max (V) | 5.5 |
| Supply Voltage-Min (V) | 3 |
| Supply Voltage-Nom (V) | 3.3 |
| Receiver Number of Bits | 3 |
| Moisture Sensitivity Level | 3 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 4.4 |
| Length | 7.8 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Renesas Electronics Corp. ISL83387EIVZ-T in the documentation section.
±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transceivers with Enhanced Automatic Powerdown and a Separate Logic Supply
As part of the category Semiconductors and subcategory Semiconductors, ISL83387EIVZ-T optimizes energy distribution in electronic devices. Its ±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transceivers with Enhanced Automatic Powerdown and a Separate Logic Supply allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, ISL83387EIVZ-T ensures stable output voltage even when the load changes. Its ±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transceivers with Enhanced Automatic Powerdown and a Separate Logic Supply makes it a reliable element in multi-level power systems.
