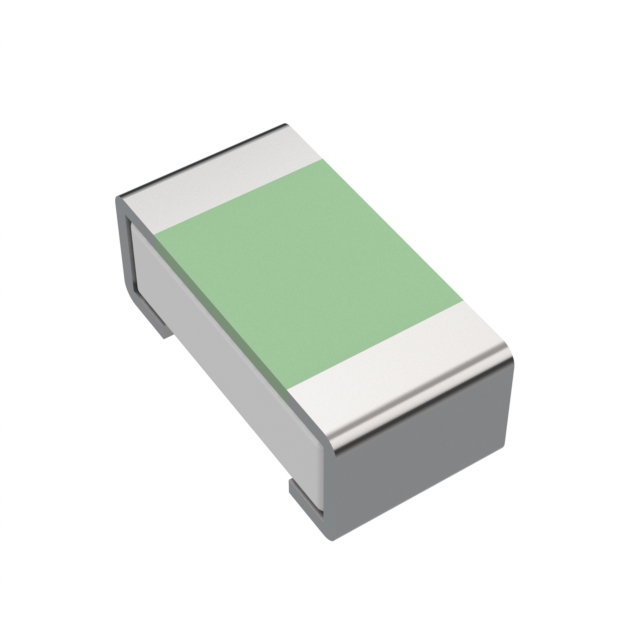

TNPW02012K00BEED
Availability
Design risk
Price trend
Lead time
| Size Code | 0201 |
| Technology | THIN FILM |
| Construction | Rectangular |
| Package Style (Meter) | SMT |
| Resistor Type | FIXED RESISTOR |
| Tolerance (%) | 0.1 |
| J-STD-609 Code | e3 |
| Packing Method | TR, Paper, 7 Inch |
| Terminal Shape | WRAPAROUND |
| Terminal Finish | MATTE TIN OVER NICKEL |
| Mounting Feature | SURFACE MOUNT |
| Resistance (ohm) | 2000 |
| Additional Feature | ANTI-SULFUR, RATED AC VOLTAGE (V): 25 |
| Package Width (mm) | 0.3 |
| Number of Terminals | 2 |
| Package Height (mm) | 0.23 |
| Package Length (mm) | 0.6 |
| Working Voltage (V) | 25 |
| Rated Temperature (Cel) | 70 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -55 |
| Rated Power Dissipation (P) (W) | 0.05 |
| Temperature Coefficient (ppm/Cel) | 25 |
| Screening Level / Reference Standard | AEC-Q200 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Vishay Intertechnology, Inc. TNPW02012K00BEED in the documentation section.
RES 2K OHM 0.1% 1/20W 0201
As a typical representative of the subcategory Passives, TNPW02012K00BEED is used to control the level of current and voltage in electrical circuits. Its RES 2K OHM 0.1% 1/20W 0201 ensures stable resistance, which is critical for precise measurements and component protection.
TNPW02012K00BEED from the category Passives by manufacturer Vishay Intertechnology, Inc. provides precise current limitation in the scheme. Thanks to its RES 2K OHM 0.1% 1/20W 0201, it contributes to stable operation of electronic devices, preventing overloads and voltage fluctuations.
