TLC2274AIDR

TEXAS INSTRUMENTS INC

no image

TLC2274AIDR

TLC2274AIDR

Availability
Constrained
Availability
Design risk
Low
Design risk
Price trend
Increasing
Price trend
Lead time
Stable
Lead time

15 results found
AON6407
Available
Available
Low
Low
Decreasing
Decreasing
Increasing
Increasing
THP3-7222
Available
Available
Medium
Medium
Stable
Stable
Increasing
Increasing
ADE9000ACPZ
Constrained
Constrained
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
EEEFK1V4R7R
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
MP3428AGL-Z
Available
Available
Medium
Medium
Decreasing
Decreasing
Decreasing
Decreasing
NE58219-T1-A
Available
Available
High
High
Stable
Stable
Stable
Stable
HSP50110JI-52
Constrained
Constrained
High
High
Decreasing
Decreasing
Stable
Stable
1206B105K500CT
Constrained
Constrained
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
RF03N3R9B250CT
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable
SGM8544XS14/TR
Available
Available
High
High
Stable
Stable
Increasing
Increasing
GU140X16J-7000B
Available
Available
High
High
Stable
Stable
Stable
Stable
ADAU1452WBCPZ-R...
Available
Available
Medium
Medium
Stable
Stable
Stable
Stable
ZX62D-B-5PA8(30...
Constrained
Constrained
Low
Low
Decreasing
Decreasing
Stable
Stable
9FGV1006C001LTG...
Available
Available
High
High
Stable
Stable
Stable
Stable
10056101-105001...
Available
Available
Low
Low
Decreasing
Decreasing
Stable
Stable

Semiconductors

Amplifiers

Lead Time     12 weeks
Data Sheet     Download TLC2274AIDR datasheet TLC2274AIDR

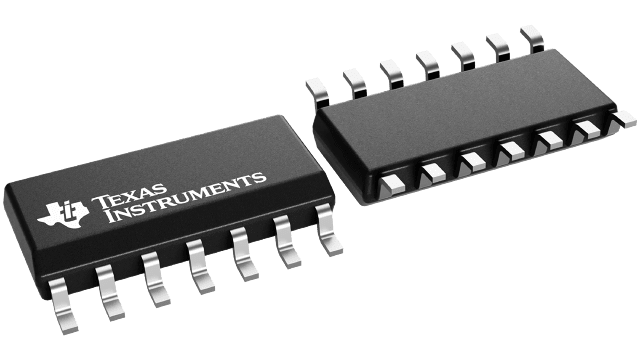

Advanced LinCMOS™ rail-to-rail quad precision operational amplifier 14-SOIC -40 to 125
