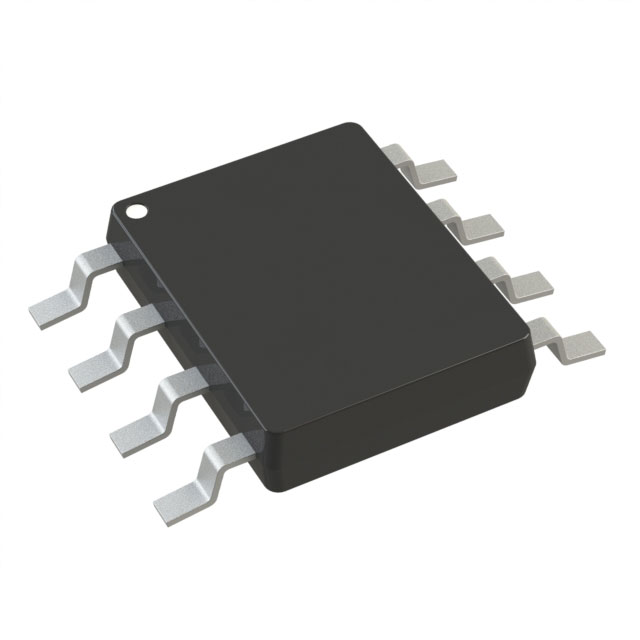

R1EX24002ASAS0I#S0
Availability
Design risk
Price trend
Lead time
Two-Wire Serial Interface 2k EEPROM (256-word x 8-bit)
| Technology | CMOS |
| Width (mm) | 3.9000 |
| Length (mm) | 4.8900 |
| JESD-30 Code | R-PDSO-G8 |
| Memory Width | 8 |
| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Memory IC Type | EEPROM |
| Operating Mode | SYNCHRONOUS |
| Parallel/Serial | SERIAL |
| Serial Bus Type | I2C |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| I2C Control Byte | 1010DDDR |
| Write Protection | HARDWARE |
| DLA Qualification | Not Qualified |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | DUAL |
| Memory Organization | 256X8 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Terminal Pitch (mm) | 1.270 |
| Number of Words Code | 256 |
| Memory Density (bits) | 2048.0000000000000000 |
| Package Body Material | PLASTIC/EPOXY |
| Seated Height-Max (mm) | 1.7300 |
| Supply Voltage-Max (V) | 5.50000 |
| Supply Voltage-Min (V) | 1.80000 |
| Supply Voltage-Nom (V) | 3.3 |
| Data Retention Time-Min | 100 |
| Number of Words (words) | 256.0000000000000000 |
| Standby Current-Max (A) | 0.000002000000000 |
| Supply Current-Max (mA) | 2.500000000000000 |
| Package Equivalence Code | SOP8,.25 |
| Clock Frequency-Max (MHz) | 0.40000 |
| Endurance (Write/Erase Cycles) | 1000000.000000000000000 |
| Operating Temperature-Max (Cel) | 85.0 |
| Operating Temperature-Min (Cel) | -40.0 |
| Write Cycle Time-Max (tWC) (ms) | 5.0000000000000000 |
| Width | 3.9 |
| Length | 4.89 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Renesas Electronics Corp. R1EX24002ASAS0I#S0 in the documentation section.
Two-Wire Serial Interface 2k EEPROM (256-word x 8-bit)
As part of the category Semiconductors and subcategory Semiconductors, R1EX24002ASAS0I#S0 optimizes energy distribution in electronic devices. Its Two-Wire Serial Interface 2k EEPROM (256-word x 8-bit) allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, R1EX24002ASAS0I#S0 ensures stable output voltage even when the load changes. Its Two-Wire Serial Interface 2k EEPROM (256-word x 8-bit) makes it a reliable element in multi-level power systems.
