Semiconductors

Interface ICs

Lead Time     12 weeks

Datasheet

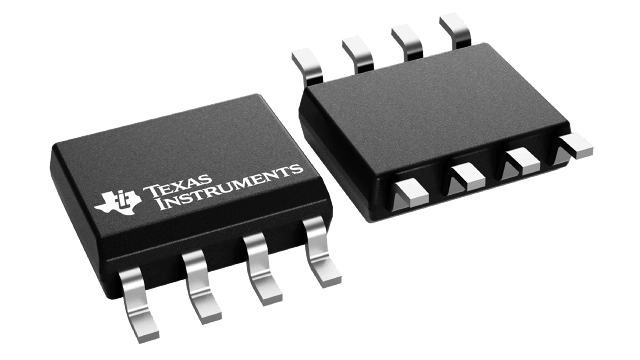

    Download UCC5390SCDR datasheet UCC5390SCDR

3kVrms/5kVrms, ±10A single-channel isolated gate driver with UVLO referenced to GND or split output 8-SOIC -40 to 125

Technical Data

Manufacturer texas instruments inc
MPN UCC5390SCDR
Width (mm) 5.8500
Length (mm) 7.5000
JESD-30 Code R-PDSO-G8
Package Code SOP
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e4
Output Polarity COMPLEMENTARY
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
High Side Driver NO
Interface IC Type BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER
Temperature Grade AUTOMOTIVE
Terminal Position DUAL
Turn-on Time (us) 0.1000
Number of Channels 1.0000
Turn-off Time (us) 0.1000
Number of Functions 1.0000
Number of Terminals 8.0000
Terminal Pitch (mm) 1.2700
Built-in Protections TRANSIENT; UNDER VOLTAGE
Input Characteristics DIFFERENTIAL
Package Body Material PLASTIC/EPOXY
Output Characteristics STANDARD
Output Current-Max (A) 17.0000
Seated Height-Max (mm) 2.8000
Supply Voltage-Max (V) 15.0000
Supply Voltage-Min (V) 3.0000
Supply Voltage-Nom (V) 3.3000
Supply Voltage1-Max (V) 33.0000
Supply Voltage1-Min (V) 13.2000
Supply Voltage1-Nom (V) 15.0000
Moisture Sensitivity Level 2.0000
Output Current Flow Direction SOURCE AND SINK
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -40.0000
Output Peak Current Limit-Nom (A) 17.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Interface ICs, UCC5390SCDR optimizes energy distribution in electronic devices. Its 3kVrms/5kVrms, ±10A single-channel isolated gate driver with UVLO referenced to GND or split output 8-SOIC -40 to 125 allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Interface ICs, UCC5390SCDR ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for UCC5390SCDR in the documentation section.

3kVrms/5kVrms, ±10A single-channel isolated gate driver with UVLO referenced to GND or split output 8-SOIC -40 to 125
