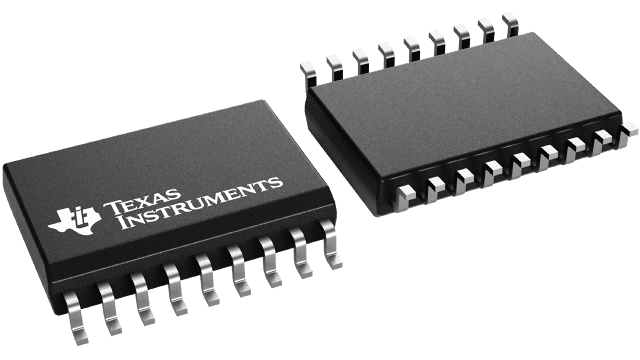

ULN2803ADWR
Availability
Design risk
Price trend
Lead time
DARLINGTON TRANSISTOR ARRAY
| Width (mm) | 7.5000 |
| Length (mm) | 11.5500 |
| JESD-30 Code | R-PDSO-G18 |
| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER |
| Terminal Position | DUAL |
| Number of Functions | 1 |
| Number of Terminals | 18 |
| Terminal Pitch (mm) | 1.270 |
| Built-in Protections | TRANSIENT |
| Driver Number of Bits | 8 |
| Package Body Material | PLASTIC/EPOXY |
| Output Characteristics | OPEN-COLLECTOR |
| Output Current-Max (A) | 0.500000000000000 |
| Seated Height-Max (mm) | 2.6500 |
| Supply Voltage-Nom (V) | 3.3000 |
| Supply Current-Max (mA) | 1.35000000 |
| Package Equivalence Code | SOP18,.4 |
| Output Current Flow Direction | SINK |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Output Peak Current Limit-Nom (A) | 0.5000000000000000 |
