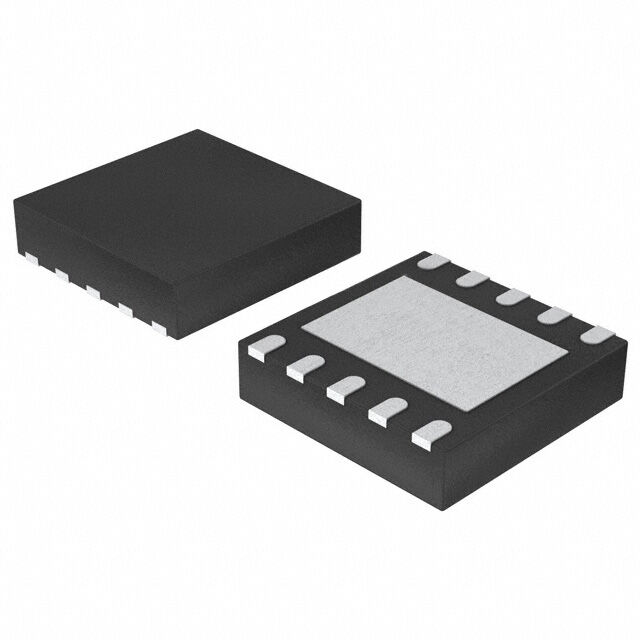

SIP32419DN-T1-GE4
Availability
Design risk
Price trend
Lead time
Current Limit SW 1-IN 1-OUT 6V to 28V 3.5A 10-Pin DFN EP T/R
| Width (mm) | 3 |
| Length (mm) | 3 |
| JESD-30 Code | S-PDSO-N10 |
| Package Code | HVSON |
| Package Shape | SQUARE |
| Package Style | DFN-10 |
| Surface Mount | YES |
| Terminal Form | NO LEAD |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | DUAL |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Terminals | 10 |
| Terminal Pitch (mm) | 0.5 |
| Adjustable Threshold | YES |
| Package Body Material | PLASTIC/EPOXY |
| Analog IC - Other Type | SPST |
| Seated Height-Max (mm) | 1 |
| Supply Voltage-Max (V) | 28 |
| Supply Voltage-Min (V) | 6 |
| Supply Voltage-Nom (V) | 12 |
| Package Equivalence Code | SOLCC10,.11,20 |
| Threshold Voltage-Nom (V) | +4.8V |
| On-state Resistance-Max (ohm) | 0.072 |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Configuration | High Side |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Vishay Intertechnology, Inc. SIP32419DN-T1-GE4 in the documentation section.
Current Limit SW 1-IN 1-OUT 6V to 28V 3.5A 10-Pin DFN EP T/R
As part of the category Semiconductors and subcategory Semiconductors, SIP32419DN-T1-GE4 optimizes energy distribution in electronic devices. Its Current Limit SW 1-IN 1-OUT 6V to 28V 3.5A 10-Pin DFN EP T/R allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, SIP32419DN-T1-GE4 ensures stable output voltage even when the load changes. Its Current Limit SW 1-IN 1-OUT 6V to 28V 3.5A 10-Pin DFN EP T/R makes it a reliable element in multi-level power systems.
