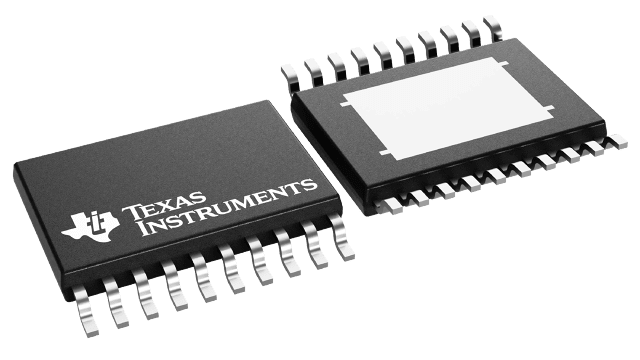

6-100V Wide Vin, Current Mode Synchronous Buck Controller 20-HTSSOP -40 to 150
| Width (mm) | 4.4 |
| Length (mm) | 6.5 |
| Control Mode | CURRENT-MODE |
| JESD-30 Code | R-PDSO-G20 |
| Package Code | HTSSOP |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e3 |
| Terminal Finish | Matte Tin (Sn) |
| Control Technique | PULSE WIDTH MODULATION |
| DLA Qualification | Not Qualified |
| Number of Outputs | 1 |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Additional Feature | ALSO OPERATES IN ADJUSTABLE MODE FROM 1.215V TO 80V |
| Number of Functions | 1 |
| Number of Terminals | 20 |
| Terminal Pitch (mm) | 0.65 |
| Input Voltage-Max (V) | 100 |
| Input Voltage-Min (V) | 6 |
| Input Voltage-Nom (V) | 48 |
| Package Body Material | PLASTIC/EPOXY |
| Analog IC - Other Type | SWITCHING CONTROLLER |
| Output Current-Max (A) | 20 |
| Output Voltage-Max (V) | 80 |
| Output Voltage-Min (V) | 1.215 |
| Output Voltage-Nom (V) | 7.4 |
| Seated Height-Max (mm) | 1.1 |
| Switcher Configuration | PUSH-PULL |
| Moisture Sensitivity Level | 1 |
| Peak Reflow Temperature (Cel) | 260 |
| Switching Frequency-Max (kHz) | 1000 |
| Operating Temperature-Max (Cel) | 150 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
