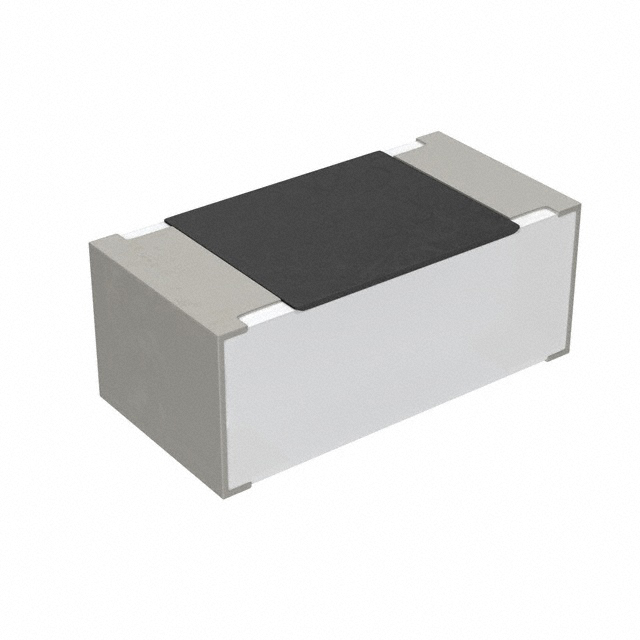

WR12X1543FTL
Availability
Design risk
Price trend
Lead time
| Size Code | 1206 |
| Technology | METAL GLAZE/THICK FILM |
| Construction | Rectangular |
| Package Style (Meter) | SMT |
| Resistor Type | FIXED RESISTOR |
| Tolerance (%) | 1 |
| J-STD-609 Code | e3 |
| Packing Method | TR, PAPER, 7 INCH |
| Terminal Shape | WRAPAROUND |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier |
| Mounting Feature | SURFACE MOUNT |
| Resistance (ohm) | 154000 |
| Additional Feature | FLAME PROOF, LASER TRIMMABLE |
| Package Width (mm) | 1.6 |
| Number of Terminals | 2 |
| Package Height (mm) | 0.55 |
| Package Length (mm) | 3.1 |
| Working Voltage (V) | 200 |
| Rated Temperature (Cel) | 70 |
| Operating Temperature-Max (Cel) | 155 |
| Operating Temperature-Min (Cel) | -55 |
| Rated Power Dissipation (P) (W) | 0.25 |
| Temperature Coefficient (ppm/Cel) | 100 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Walsin Technology Corporation WR12X1543FTL in the documentation section.
RES 154K OHM 1% 1/4W 1206
As a typical representative of the subcategory Passives, WR12X1543FTL is used to control the level of current and voltage in electrical circuits. Its RES 154K OHM 1% 1/4W 1206 ensures stable resistance, which is critical for precise measurements and component protection.
WR12X1543FTL from the category Passives by manufacturer Walsin Technology Corporation provides precise current limitation in the scheme. Thanks to its RES 154K OHM 1% 1/4W 1206, it contributes to stable operation of electronic devices, preventing overloads and voltage fluctuations.
