Semiconductors

Other Semiconductors

Lead Time     12 weeks
Data Sheet     Download TS3USB221RSER datasheet TS3USB221RSER

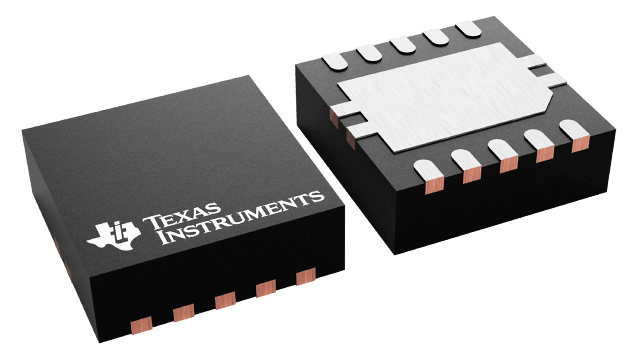

High-Speed USB 2.0 (480 Mbps) 1:2 Multiplexer/Demultiplexer Switch With Single Enable 10-UQFN -40 to 85

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN TS3USB221RSER
Output ( V ) SEPARATE OUTPUT
Switching ( V ) BREAK-BEFORE-MAKE
Width (mm) 1.5000
Length (mm) 2.0000
JESD-30 Code R-PQCC-N10
Package Code VQCCN
Package Shape RECTANGULAR
Package Style ( Meter ) CHIP CARRIER, VERY THIN PROFILE
Surface Mount YES
Terminal Form NO LEAD
J-STD-609 Code e4
Normal Position ( V ) NO
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
DLA Qualification Not Qualified
Temperature Grade INDUSTRIAL
Terminal Position QUAD
Additional Feature Configuration : 2:1 SPDT
Number of Channels 2.0000
Bandwidth-Nom (MHz) 1100.0000
Number of Functions 1.0000
Number of Terminals 10.0000
Terminal Pitch (mm) 0.5000
Input Voltage-Max (V) 5.5000
Input Voltage-Min (V) 0.0000
Package Body Material PLASTIC/EPOXY
Analog IC - Other Type DIFFERENTIAL MULTIPLEXER
Seated Height-Max (mm) 0.6000
Supply Voltage-Max (V) 3.6000
Supply Voltage-Min (V) 2.3000
Supply Voltage-Nom (V) 2.5000
Supply Current-Max (mA) 0.0300
Switch-on Time-Max (ns) 10.0000
Package Equivalence Code LCC10,.06X.08,20
Switch-off Time-Max (ns) 17.0000
Moisture Sensitivity Level 1.0000
Off-state Isolation-Nom (dB) 41.0000
On-state Resistance-Max (ohm) 6.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
On-state Resistance Match-Nom (ohm) 0.2000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock
