Semiconductors

Other Semiconductors

Lead Time     6 weeks
Data Sheet     Download TPS7A7001DDAR datasheet TPS7A7001DDAR

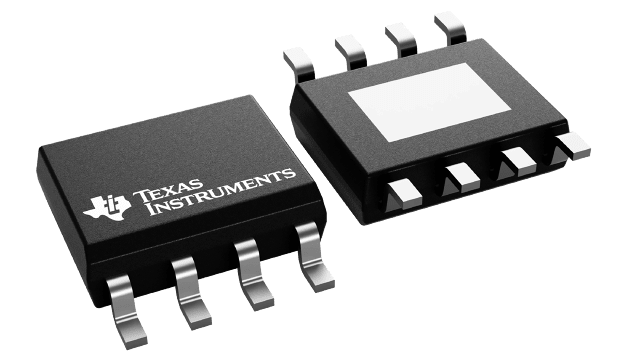

2-A, adjustable ultra-low-dropout voltage regulator with enable 8-SO PowerPAD -40 to 125

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN TPS7A7001DDAR
Technology CMOS
Width (mm) 3.9000
Length (mm) 4.9000
JESD-30 Code R-PDSO-G8
Package Code HLSOP
Adjustability ADJUSTABLE
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e4
Packing Method TR
Regulator Type ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Terminal Finish Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
DLA Qualification Not Qualified
Number of Outputs 1.0000
Terminal Position DUAL
Number of Functions 1.0000
Number of Terminals 8.0000
Terminal Pitch (mm) 1.2700
Input Voltage-Max (V) 6.5000
Input Voltage-Min (V) 1.4000
Package Body Material PLASTIC/EPOXY
Seated Height-Max (mm) 1.7000
Load Regulation-Max (%) 1.5000
Output Current1-Max (A) 2.0000
Output Voltage1-Max (V) 5.0000
Output Voltage1-Min (V) 0.5000
Dropout Voltage1-Max (V) 0.3800
Dropout Voltage1-Nom (V) 0.2000
Package Equivalence Code SOP8,.25
Line Regulation-Max (%/V) 0.4000
Voltage Tolerance-Max (%) 2.0000
Moisture Sensitivity Level 2.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -40.0000
Operating Temperature TJ-Max (Cel) 125.0000
Operating Temperature TJ-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Other Semiconductors, TPS7A7001DDAR optimizes energy distribution in electronic devices. Its 2-A, adjustable ultra-low-dropout voltage regulator with enable 8-SO PowerPAD -40 to 125 allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Other Semiconductors, TPS7A7001DDAR ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for TPS7A7001DDAR in the documentation section.

2-A, adjustable ultra-low-dropout voltage regulator with enable 8-SO PowerPAD -40 to 125
