Lead Time     12 weeks
Data Sheet     Download OPA548F/500 datasheet OPA548F/500

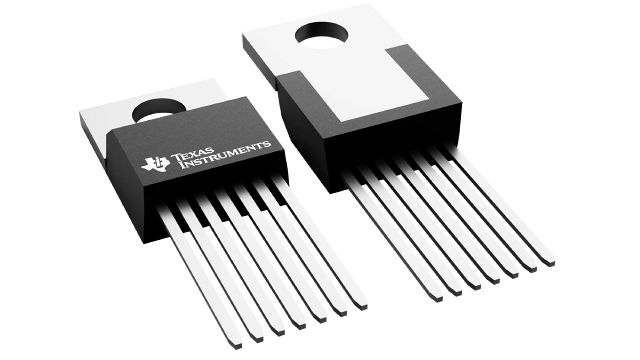

High-voltage, high-current, wide-output-voltage-swing power operational amplifier 7-DDPAK/TO-263 -40 to 85

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN OPA548F/500
Power YES
Low-Bias NO
Wideband NO
Low-Offset NO
Micropower NO
Width (mm) 8.8900
Length (mm) 10.0950
JESD-30 Code R-PSSO-G7
Package Code TO-263
Sub Category Operational Amplifier
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE
Surface Mount YES
Terminal Form GULL WING
Amplifier Type Power
J-STD-609 Code e3
Packing Method TR
Terminal Finish Matte Tin (Sn)
Amp Architecture VOLTAGE-FEEDBACK
Voltage Gain-Min 31620.0000
DLA Qualification Not Qualified
Temperature Grade INDUSTRIAL
Terminal Position SINGLE
Programmable Power YES
Number of Functions 1.0000
Number of Terminals 7.0000
Terminal Pitch (mm) 1.2700
Slew Rate-Nom (V/us) 10.0000
Package Body Material PLASTIC/EPOXY
Frequency Compensation YES
Seated Height-Max (mm) 4.9550
Supply Voltage-Nom (V) 30.0000
Supply Current-Max (mA) 20.0000
Unity Gain BW-Nom (kHz) 1000.0000
Package Equivalence Code SMSIP7H,.55,50TB
Moisture Sensitivity Level 2.0000
Supply Voltage Limit-Max (V) 30.0000
Input Offset Voltage-Max (uV) 10000.0000
Peak Reflow Temperature (Cel) 260.0000
Negative Supply Voltage-Nom (V) -30.0000
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
Bias Current-Max (IIB) @25C (uA) 0.5000
Neg Supply Voltage Limit-Max (V) -30.0000
Common-mode Reject Ratio-Min (dB) 80.0000
Common-mode Reject Ratio-Nom (dB) 95.0000
Average Bias Current-Max (IIB) (uA) -0.5000
Time@Peak Reflow Temperature-Max (s) 30.0000
Width 8.89 mm
Length 10.1 mm
Availability In stock
