Semiconductors

Other Semiconductors

Lead Time     10 weeks
Data Sheet     Download LM5163QDDARQ1 datasheet LM5163QDDARQ1

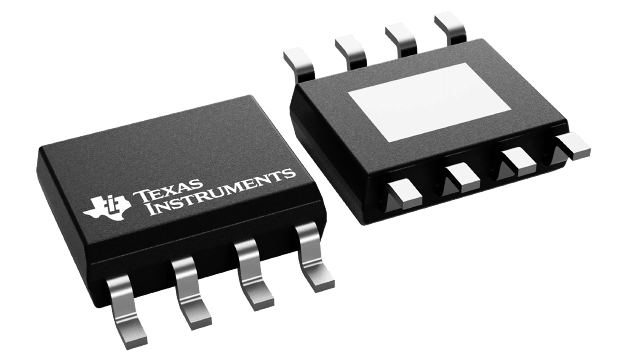

Automotive 6-V to 100-V input, 0.5-A synchronous buck DC/DC converter with ultra-low IQ 8-SO PowerPAD -40 to 150

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN LM5163QDDARQ1
Width (mm) 3.9000
Length (mm) 4.9000
JESD-30 Code R-PDSO-G8
Package Code HLSOP
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e4
Terminal Finish Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Number of Outputs 1.0000
Temperature Grade AUTOMOTIVE
Terminal Position DUAL
Number of Functions 1.0000
Number of Terminals 8.0000
Terminal Pitch (mm) 1.2700
Input Voltage-Max (V) 100.0000
Input Voltage-Min (V) 6.0000
Input Voltage-Nom (V) 24.0000
Package Body Material PLASTIC/EPOXY
Analog IC - Other Type SWITCHING REGULATOR
Output Current-Max (A) 0.5000
Output Voltage-Max (V) 90.0000
Output Voltage-Min (V) 1.2000
Seated Height-Max (mm) 1.7000
Switcher Configuration BUCK
Moisture Sensitivity Level 2.0000
Peak Reflow Temperature (Cel) 260.0000
Switching Frequency-Max (kHz) 1000.0000
Operating Temperature-Max (Cel) 150.0000
Operating Temperature-Min (Cel) -40.0000
Screening Level / Reference Standard AEC-Q100
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Other Semiconductors, LM5163QDDARQ1 optimizes energy distribution in electronic devices. Its Automotive 6-V to 100-V input, 0.5-A synchronous buck DC/DC converter with ultra-low IQ 8-SO PowerPAD -40 to 150 allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Other Semiconductors, LM5163QDDARQ1 ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for LM5163QDDARQ1 in the documentation section.

Automotive 6-V to 100-V input, 0.5-A synchronous buck DC/DC converter with ultra-low IQ 8-SO PowerPAD -40 to 150
