Semiconductors

Converters

Lead Time     6 weeks
Data Sheet     Download ADS8556IPMR datasheet ADS8556IPMR

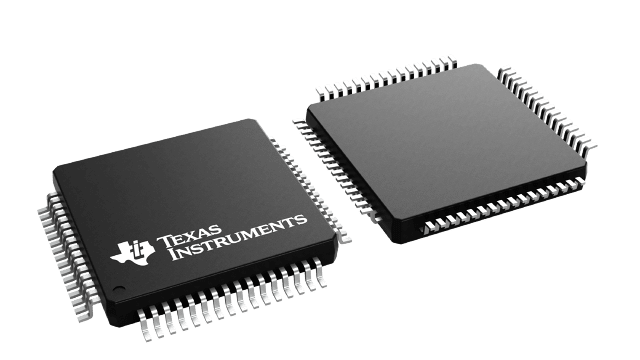

630kSPS 6-Channel Simultaneous-Sampling ADC 64-LQFP -40 to 125

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN ADS8556IPMR
Technology CMOS
Width (mm) 10.0000
Length (mm) 10.0000
JESD-30 Code S-PQFP-G64
Package Code LFQFP
Output Format SERIAL, PARALLEL, WORD
Package Shape SQUARE
Package Style ( Meter ) FLATPACK, LOW PROFILE, FINE PITCH
Surface Mount YES
Terminal Form GULL WING
Converter Type ADC, SUCCESSIVE APPROXIMATION
J-STD-609 Code e4
Number of Bits 16.0000
Output Bit Code BINARY, 2S COMPLEMENT BINARY
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
DLA Qualification Not Qualified
Sample Rate (MHz) 0.6300
Temperature Grade AUTOMOTIVE
Terminal Position QUAD
Number of Functions 1.0000
Number of Terminals 64.0000
Terminal Pitch (mm) 0.5000
Package Body Material PLASTIC/EPOXY
Seated Height-Max (mm) 1.6000
Supply Voltage-Min (V) 2.7000
Supply Voltage-Nom (V) 5.0000
Supply Current-Max (mA) 36.0000
Conversion Time-Max (us) 1.2600
Package Equivalence Code QFP64,.47SQ,20
Moisture Sensitivity Level 3.0000
Analog Input Voltage-Max (V) 12.0000
Analog Input Voltage-Min (V) -12.0000
Linearity Error-Max (EL) (%) 0.0061
Number of Analog In Channels 6.0000
Peak Reflow Temperature (Cel) 260.0000
Sample-and-Hold/Track-and-Hold SAMPLE
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Configuration S/H-ADC
Availability In stock
