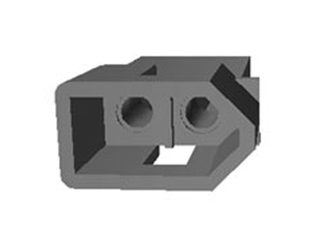

Pin & Socket Connectors 02p .093 comm p&s plug .248cl

Request price

Technical Data

Manufacturer te connectivity ltd

MPN 770069-1

Option GENERAL PURPOSE

Empty Shell YES

Panel Mount NO

EMI Shielded NO

Contact Style RND PIN-SKT

Mounting Type CABLE

Connector Type COMBINATION LINE CONNECTOR

Contact Gender MALE

Filter Feature NO

J-STD-609 Code e3/e4

Mixed Contacts NO

Mounting Style STRAIGHT

Contact Pattern RECTANGULAR

DIN Conformance NO

IEC Conformance NO

Insulator Color NATURAL

MIL Conformance NO

Number of Ports 1.0000

Body/Shell Style PLUG

Contact Material NOT APPLICABLE

Termination Type CRIMP

Body Depth (inch) 0.6400

Mounting Option 1 DETENT

Mounting Option 2 LOCKING

Additional Feature COMPATIBLE CONTACTS: 350418-1; 350418-5; 770147-1; 350417-1; 350417-3, PLUG

Body Length (inch) 0.6400

Insulator Material POLYAMIDE66

Mating Information MULTIPLE MATING PARTS AVAILABLE

Number of Contacts 2.0000

Body Breadth (inch) 0.3550

Contact Arrangement S0P2

Durability (Cycles) 50.0000

Terminal Pitch (mm) 6.3000

Number of Connectors ONE

UL Flammability Code 94V-2

Number of Rows Loaded 1.0000

Mains Connector Rating 115/230VAC

Contact Finish - Mating NOT APPLICABLE

Insertion Force-Max (N) 11.1200

Withdrawl Force-Min (N) 6.6720

Contact Resistance (mohm) 4.0000

Rated Current (Signal) (A) 13.0000

Insulation Resistance (ohm) 1000000000.0000

Contact Finish - Termination TIN/GOLD FLASH OVER NICKEL

Operating Temperature-Max (Cel) 105.0000

Operating Temperature-Min (Cel) -55.0000

Screening Level / Reference Standard CSA, UL
