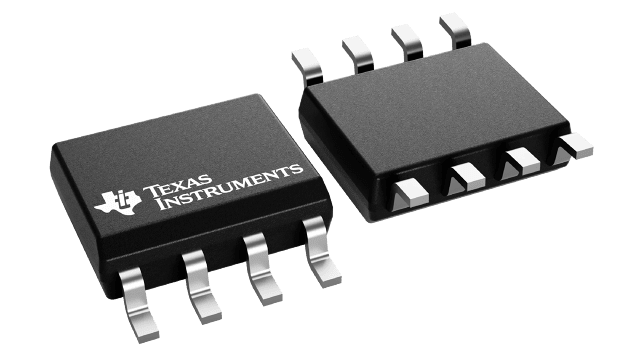

LM358DR

Dual, 30-V, 700-kHz operational amplifier 8-SOIC 0 to 70

Request price

Technical Data

Manufacturer texas instruments inc

MPN LM358DR

Power NO

Low-Bias NO

Wideband NO

Low-Offset NO

Micropower NO

Technology BIPOLAR

Width (mm) 3.9000

Length (mm) 4.9000

JESD-30 Code R-PDSO-G8

Package Code SOP

Sub Category Operational Amplifier

Package Shape RECTANGULAR

Package Style ( Meter ) SMALL OUTLINE

Surface Mount YES

Terminal Form GULL WING

Amplifier Type General Purpose

J-STD-609 Code e4

Packing Method TR

Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)

Amp Architecture VOLTAGE-FEEDBACK

Voltage Gain-Min 15000.0000

DLA Qualification Not Qualified

Temperature Grade COMMERCIAL

Terminal Position DUAL

Programmable Power NO

Number of Functions 2.0000

Number of Terminals 8.0000

Terminal Pitch (mm) 1.2700

Slew Rate-Nom (V/us) 0.3000

Package Body Material PLASTIC/EPOXY

Frequency Compensation YES

Seated Height-Max (mm) 1.7500

Supply Voltage-Nom (V) 5.0000

Supply Current-Max (mA) 2.0000

Unity Gain BW-Nom (kHz) 700.0000

Package Equivalence Code SOP8,.24

Moisture Sensitivity Level 1.0000

Supply Voltage Limit-Max (V) 16.0000

Input Offset Voltage-Max (uV) 7000.0000

Peak Reflow Temperature (Cel) 260.0000

Negative Supply Voltage-Nom (V) -5.0000

Operating Temperature-Max (Cel) 70.0000

Operating Temperature-Min (Cel) 0.0000

Bias Current-Max (IIB) @25C (uA) 0.1500

Neg Supply Voltage Limit-Max (V) -16.0000

Common-mode Reject Ratio-Min (dB) 65.0000

Common-mode Reject Ratio-Nom (dB) 80.0000

Average Bias Current-Max (IIB) (uA) -0.5000

Input Offset Current-Max (IIO) (uA) 0.0500

Time@Peak Reflow Temperature-Max (s) 30.0000

Availability In stock
