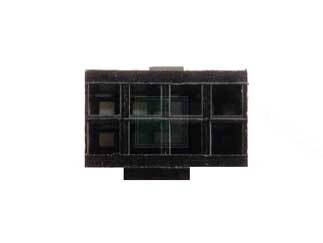

87631-3
Availability
Design risk
Price trend
Lead time
Headers & Wire Housings 08 modiv hsg comp dr .100 pol
Option | GENERAL PURPOSE |
Empty Shell | YES |
Panel Mount | NO |
EMI Shielded | NO |
Mounting Type | CABLE |
Connector Type | BOARD CONNECTOR |
Contact Gender | FEMALE |
Filter Feature | NO |
Mixed Contacts | NO |
Contact Pattern | RECTANGULAR |
DIN Conformance | NO |
IEC Conformance | NO |
Insulator Color | BLACK |
MIL Conformance | NO |
Number of Ports | 1 |
Body/Shell Style | RECEPTACLE |
Contact Material | NOT APPLICABLE |
Termination Type | CRIMP |
Body Depth (inch) | 0.24 |
Mounting Option 1 | LATCH |
Mounting Option 2 | LATCHING |
Additional Feature | POLARIZED |
Body Length (inch) | 0.21 |
Insulator Material | GLASS FILLED POLYAMIDE |
Mating Information | MULTIPLE MATING PARTS AVAILABLE |
Number of Contacts | 8 |
Body Breadth (inch) | 0.24 |
Terminal Pitch (mm) | 2.54 |
Wire Size-Max (AWG) | 20 |
Wire Size-Min (AWG) | 32 |
Number of Connectors | ONE |
UL Flammability Code | 94V-0 |
Number of Rows Loaded | 2 |
Mains Connector Rating | 3A |
Contact Finish - Mating | NOT APPLICABLE |
Rated Current (Signal) (A) | 3 |
Insulation Resistance (ohm) | 5000000000 |
Mating Contact Pitch (inch) | 0.1 |
Operating Temperature-Max (Cel) | 105 |
Operating Temperature-Min (Cel) | -65 |
Mating Contact Row Spacing (inch) | 0.1 |
Screening Level / Reference Standard | CSA, LR, U |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for TE Connectivity 87631-3 in the documentation section.
Headers & Wire Housings 08 modiv hsg comp dr .100 pol
87631-3 from the subcategory Interconnects ensures strong and durable connections between components. It guarantees resistance to vibrations and frequent connections, which is particularly important in industrial and transportation systems.
Thanks to its construction, characteristic of Interconnects, 87631-3 allows wires to be quickly connected and disconnected without additional tools. Its Headers & Wire Housings 08 modiv hsg comp dr .100 pol makes it an ideal solution for systems that require regular maintenance.
