ULN2003ADR
Availability
Design risk
Price trend
Lead time

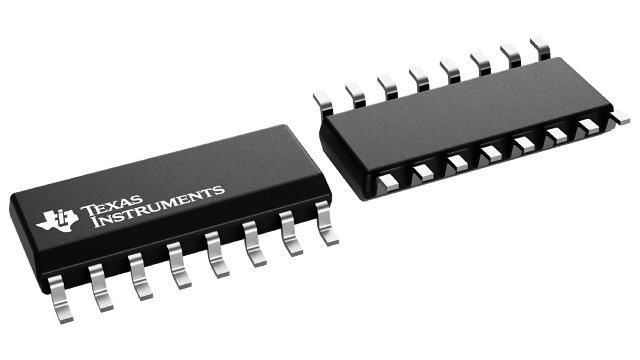

50-V, 7-ch darlington transistor array, -20C to 70C 16-SOIC -40 to 70
| Technology | BIPOLAR |
| Width (mm) | 3.9 |
| Length (mm) | 9.9 |
| JESD-30 Code | R-PDSO-G16 |
| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER |
| Terminal Position | DUAL |
| Turn-on Time (us) | 1.0000000000000000 |
| Turn-off Time (us) | 1.0000000000000000 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Terminal Pitch (mm) | 1.27 |
| Built-in Protections | TRANSIENT |
| Driver Number of Bits | 7 |
| Package Body Material | PLASTIC/EPOXY |
| Output Characteristics | OPEN-COLLECTOR |
| Output Current-Max (A) | 0.5 |
| Seated Height-Max (mm) | 1.75 |
| Package Equivalence Code | SOP16,.25 |
| Moisture Sensitivity Level | 1 |
| Output Current Flow Direction | SINK |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 70 |
| Operating Temperature-Min (Cel) | -40 |
| Output Peak Current Limit-Nom (A) | 0.5000000000000000 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
