UCC2897APWR
Availability
Design risk
Price trend
Lead time

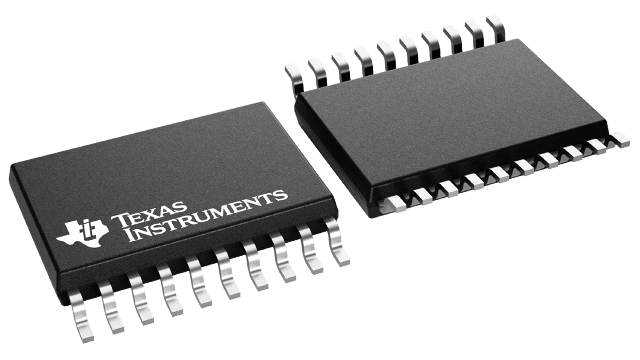

110-V active clamp current mode PWM controller with P-channel clamp FET and line OV protection 20-TSSOP -40 to 125
| Width (mm) | 4.4 |
| Length (mm) | 6.5 |
| Control Mode | CURRENT-MODE |
| JESD-30 Code | R-PDSO-G20 |
| Package Code | TSSOP |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Control Technique | PULSE WIDTH MODULATION |
| DLA Qualification | Not Qualified |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Number of Functions | 1 |
| Number of Terminals | 20 |
| Terminal Pitch (mm) | 0.65 |
| Input Voltage-Max (V) | 16 |
| Input Voltage-Min (V) | 8.5 |
| Input Voltage-Nom (V) | 12 |
| Package Body Material | PLASTIC/EPOXY |
| Analog IC - Other Type | SWITCHING CONTROLLER |
| Output Current-Max (A) | 2.5 |
| Seated Height-Max (mm) | 1.2 |
| Supply Voltage-Max (V) | 16 |
| Supply Voltage-Min (V) | 8.5 |
| Supply Voltage-Nom (V) | 12 |
| Switcher Configuration | SINGLE |
| Supply Current-Max (mA) | 3 |
| Package Equivalence Code | TSSOP20,.25 |
| Moisture Sensitivity Level | 1 |
| Peak Reflow Temperature (Cel) | 260 |
| Switching Frequency-Max (kHz) | 1000 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
