TPS1H200AQDGNRQ1
Availability
Design risk
Price trend
Lead time

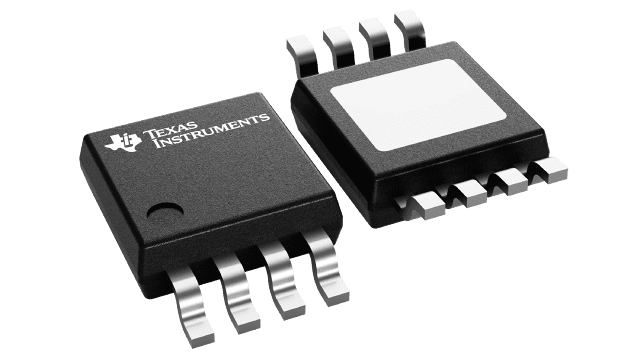

40-V, 200-mΩ, 1-ch automotive smart high-side switch with adjustable current limit 8-HVSSOP -40 to 125
| Width (mm) | 3 |
| Length (mm) | 3 |
| JESD-30 Code | S-PDSO-G8 |
| Package Code | TSSOP |
| Package Shape | SQUARE |
| Package Style (Meter) | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) |
| High Side Driver | YES |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Turn-on Time (us) | 90.0000000000000000 |
| Number of Channels | 1 |
| Turn-off Time (us) | 90.0000000000000000 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Terminal Pitch (mm) | 0.65 |
| Built-in Protections | TRANSIENT; OVER CURRENT; THERMAL |
| Package Body Material | PLASTIC/EPOXY |
| Seated Height-Max (mm) | 1.1 |
| Supply Voltage-Max (V) | 40 |
| Supply Voltage-Min (V) | 4 |
| Moisture Sensitivity Level | 2 |
| Output Current Flow Direction | SINK |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| Output Peak Current Limit-Nom (A) | 4.8000000000000000 |
| Screening Level / Reference Standard | AEC-Q100 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
