TPD1E10B06DPYR
Availability
Design risk
Price trend
Lead time

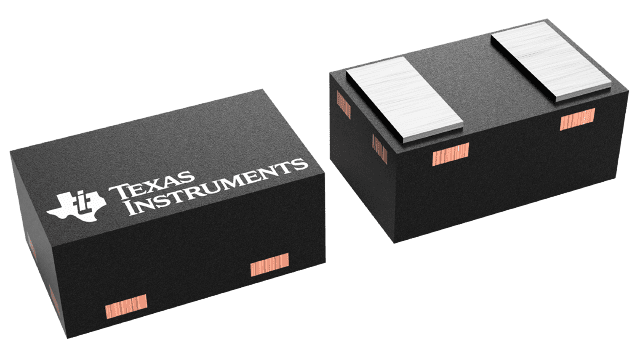

12-pF, ±5.5V, ±30-kV ESD protection diode in 0402 and SOD-523 package 2-X1SON -40 to 125
| Polarity | BIDIRECTIONAL |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Technology | AVALANCHE |
| JESD-30 Code | R-PBCC-N2 |
| Configuration | SINGLE, 1 CHANNEL |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | CHIP CARRIER |
| Surface Mount | YES |
| Terminal Form | NO LEAD |
| J-STD-609 Code | e4 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Position | BOTTOM |
| Additional Feature | Number of channels : 1 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Package Body Material | PLASTIC/EPOXY |
| Diode Element Material | SILICON |
| Clamping Voltage-Max (V) | 10 |
| Reverse Current-Max (uA) | 0.1 |
| Breakdown Voltage-Min (V) | 6 |
| Breakdown Voltage-Nom (V) | 6 |
| Moisture Sensitivity Level | 1 |
| Peak Reflow Temperature (Cel) | 260 |
| Rep Pk Reverse Voltage-Max (V) | 5.5 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| Non-rep Peak Rev Power Dis-Max (W) | 90 |
| Screening Level / Reference Standard | IEC-61000-4-2, 4-5 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
