BQ25171QWDRCRQ1
Availability
Design risk
Price trend
Lead time

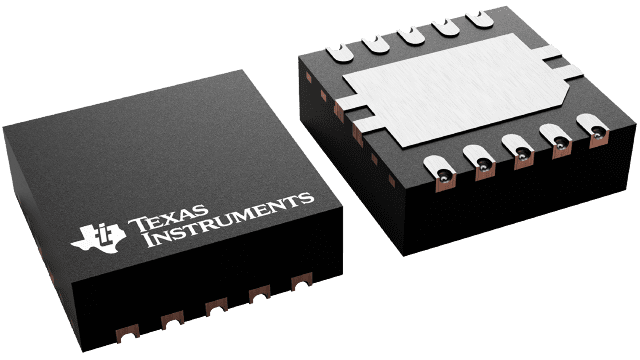

Automotive, 800-mA linear battery charger for 1- to 2-cell Li-ion, LiFePO4, and 1- to 6-cell NiMH 10-VSON -40 to 125
| Width (mm) | 3 |
| Length (mm) | 3 |
| JESD-30 Code | S-PDSO-N10 |
| Package Code | HVSON |
| Package Shape | SQUARE |
| Package Style (Meter) | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | NO LEAD |
| J-STD-609 Code | e4 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Terminals | 10 |
| Terminal Pitch (mm) | 0.5 |
| Adjustable Threshold | YES |
| Input Voltage-Max (V) | 18 |
| Input Voltage-Min (V) | 3 |
| Package Body Material | PLASTIC/EPOXY |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT |
| Seated Height-Max (mm) | 1 |
| Supply Voltage-Max (V) | 18 |
| Supply Voltage-Min (V) | 3 |
| Package Equivalence Code | SOLCC10,.12,20 |
| Moisture Sensitivity Level | 2 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| Screening Level / Reference Standard | AEC-Q100 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Texas Instruments Incorporated BQ25171QWDRCRQ1 in the documentation section.
Automotive, 800-mA linear battery charger for 1- to 2-cell Li-ion, LiFePO4, and 1- to 6-cell NiMH 10-VSON -40 to 125
As part of the category Semiconductors and subcategory Semiconductors, BQ25171QWDRCRQ1 optimizes energy distribution in electronic devices. Its Automotive, 800-mA linear battery charger for 1- to 2-cell Li-ion, LiFePO4, and 1- to 6-cell NiMH 10-VSON -40 to 125 allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, BQ25171QWDRCRQ1 ensures stable output voltage even when the load changes. Its Automotive, 800-mA linear battery charger for 1- to 2-cell Li-ion, LiFePO4, and 1- to 6-cell NiMH 10-VSON -40 to 125 makes it a reliable element in multi-level power systems.
