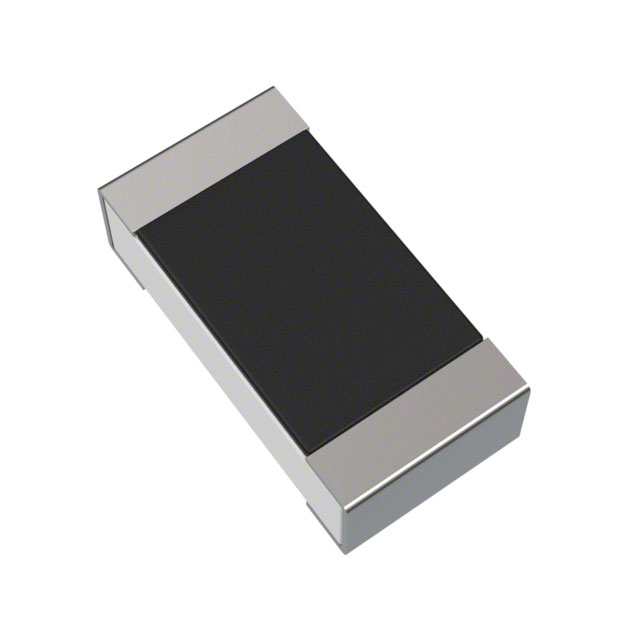

RC1206FR-0718RL
Availability
Design risk
Price trend
Lead time
Standard Thick Film Chip Resistors
| Size Code | 1206 |
| Technology | METAL GLAZE/THICK FILM |
| Construction | Rectangular |
| Package Style (Meter) | SMT |
| Resistor Type | FIXED RESISTOR |
| Tolerance (%) | 1 |
| J-STD-609 Code | e3 |
| Packing Method | TR, PAPER, 7 INCH |
| Terminal Shape | WRAPAROUND |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier |
| Mounting Feature | SURFACE MOUNT |
| Resistance (ohm) | 18 |
| Additional Feature | LASER TRIMMABLE |
| Package Width (mm) | 1.6 |
| Number of Terminals | 2 |
| Package Height (mm) | 0.55 |
| Package Length (mm) | 3.1 |
| Working Voltage (V) | 200 |
| Rated Temperature (Cel) | 70 |
| Operating Temperature-Max (Cel) | 155 |
| Operating Temperature-Min (Cel) | -55 |
| Rated Power Dissipation (P) (W) | 0.25 |
| Temperature Coefficient (ppm/Cel) | 100 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for YAGEO Corp. RC1206FR-0718RL in the documentation section.
Standard Thick Film Chip Resistors
As a typical representative of the subcategory Passives, RC1206FR-0718RL is used to control the level of current and voltage in electrical circuits. Its Standard Thick Film Chip Resistors ensures stable resistance, which is critical for precise measurements and component protection.
RC1206FR-0718RL from the category Passives by manufacturer YAGEO Corp. provides precise current limitation in the scheme. Thanks to its Standard Thick Film Chip Resistors, it contributes to stable operation of electronic devices, preventing overloads and voltage fluctuations.
