Interconnects

Rectangular Connectors

Lead Time     66 weeks

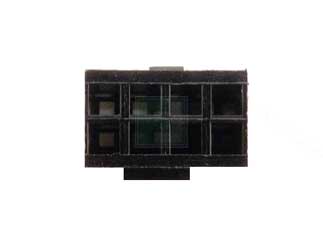

Headers & Wire Housings 08 modiv hsg comp dr .100 pol

Technical Data

Manufacturer TE CONNECTIVITY LTD
MPN 87631-3
Option GENERAL PURPOSE
Empty Shell YES
Panel Mount NO
EMI Shielded NO
Mounting Type CABLE
Connector Type BOARD CONNECTOR
Contact Gender FEMALE
Filter Feature NO
Mixed Contacts NO
Contact Pattern RECTANGULAR
DIN Conformance NO
IEC Conformance NO
Insulator Color BLACK
MIL Conformance NO
Number of Ports 1.0000
Body/Shell Style RECEPTACLE
Contact Material NOT APPLICABLE
Termination Type CRIMP
Body Depth (inch) 0.2400
Mounting Option 1 LATCH
Mounting Option 2 LATCHING
Additional Feature POLARIZED
Body Length (inch) 0.2100
Insulator Material GLASS FILLED POLYAMIDE
Mating Information MULTIPLE MATING PARTS AVAILABLE
Number of Contacts 8.0000
Body Breadth (inch) 0.2400
Terminal Pitch (mm) 2.5400
Wire Size-Max (AWG) 20.0000
Wire Size-Min (AWG) 32.0000
Number of Connectors ONE
UL Flammability Code 94V-0
Number of Rows Loaded 2.0000
Mains Connector Rating 3A
Contact Finish - Mating NOT APPLICABLE
Rated Current (Signal) (A) 3.0000
Insulation Resistance (ohm) 5000000000.0000
Mating Contact Pitch (inch) 0.1000
Operating Temperature-Max (Cel) 105.0000
Operating Temperature-Min (Cel) -65.0000
Mating Contact Row Spacing (inch) 0.1000
Screening Level / Reference Standard CSA, LR, U
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

87631-3 from the subcategory Rectangular Connectors ensures strong and durable connections between components. It guarantees resistance to vibrations and frequent connections, which is particularly important in industrial and transportation systems.

Thanks to its construction, characteristic of Rectangular Connectors, 87631-3 allows wires to be quickly connected and disconnected without additional tools. Its Headers & Wire Housings 08 modiv hsg comp dr .100 pol, makes it an ideal solution for systems that require regular maintenance.

You can download the user manual and technical specifications for 87631-3 in the documentation section.

Headers & Wire Housings 08 modiv hsg comp dr .100 pol
