Semiconductors

Other Semiconductors

Lead Time 118 weeks

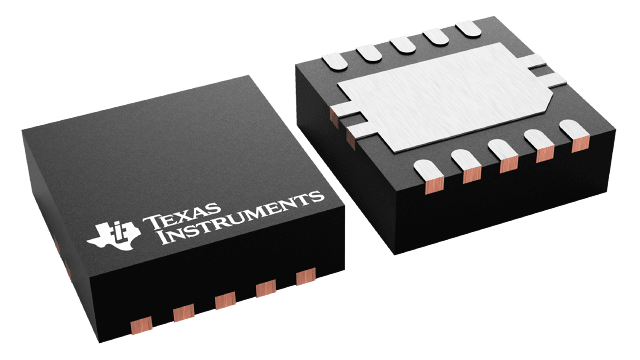

27V, 1.2A switch, 1.2MHz boost converter with integrated power diode 10-VSON -40 to 85

Request price

Technical Data

Manufacturer texas instruments inc

MPN TPS61081DRCR

Width (mm) 3.0000

Length (mm) 3.0000

Control Mode CURRENT-MODE

JESD-30 Code S-PDSO-N10

Package Code HVSON

Package Shape SQUARE

Package Style ( Meter ) SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

Surface Mount YES

Terminal Form NO LEAD

J-STD-609 Code e4

Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)

Control Technique PULSE WIDTH MODULATION

DLA Qualification Not Qualified

Number of Outputs 1.0000

Temperature Grade INDUSTRIAL

Terminal Position DUAL

Number of Functions 1.0000

Number of Terminals 10.0000

Terminal Pitch (mm) 0.5000

Input Voltage-Max (V) 6.0000

Input Voltage-Min (V) 2.5000

Input Voltage-Nom (V) 3.6000

Package Body Material PLASTIC/EPOXY

Analog IC - Other Type SWITCHING REGULATOR

Output Current-Max (A) 2.0000

Output Voltage-Max (V) 27.0000

Output Voltage-Min (V) 2.7000

Seated Height-Max (mm) 1.0000

Switcher Configuration BOOST

Moisture Sensitivity Level 2.0000

Peak Reflow Temperature (Cel) 260.0000

Switching Frequency-Max (kHz) 1200.0000

Operating Temperature-Max (Cel) 85.0000

Operating Temperature-Min (Cel) -40.0000

Time@Peak Reflow Temperature-Max (s) 30.0000

Availability In stock

Submit Request

CONTACT REASON

By checking this box, I confirm that I have reviewed and agree to the Terms & Conditions, Privacy Policy and any other applicable policies.

I consent to the processing of my personal data in accordance with GDPR requirements.

Monitor Lead-Time/Receive updates

Receive Market trends

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

+1-888-952-9225

Frequently Asked Questions

How does TPS61081DRCR contribute to energy efficiency?

As part of the category Semiconductors and subcategory Other Semiconductors, TPS61081DRCR optimizes energy distribution in electronic devices. Its 27V, 1.2A switch, 1.2MHz boost converter with integrated power diode 10-VSON -40 to 85 allows minimizing losses and increasing the overall system efficiency.

Why is TPS61081DRCR suitable for complex power management systems?

As a component of the subcategory Other Semiconductors, TPS61081DRCR ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

What documentation is available for TPS61081DRCR?

You can download the user manual and technical specifications for TPS61081DRCR in the documentation section.

What are the key features of TPS61081DRCR?

27V, 1.2A switch, 1.2MHz boost converter with integrated power diode 10-VSON -40 to 85
