95503-2881
Availability
Design risk
Price trend
Lead time

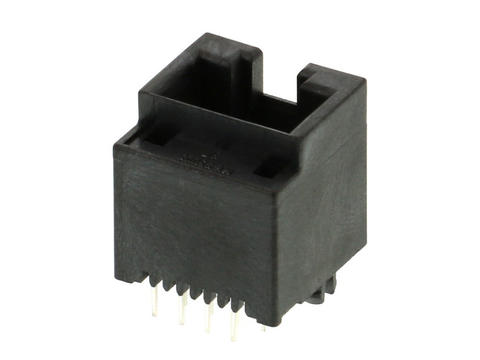

Conn RJ-45 RCP 8 POS 1.27mm Solder ST Thru-Hole 8 Terminal 1 Port Modular Jack 8/8, RJ45 Cat 3 Tray
| Option | GENERAL PURPOSE |
| Empty Shell | NO |
| Contact Style | TELCOM, MODULAR |
| Mounting Type | BOARD |
| Connector Type | TELECOM AND DATACOM CONNECTOR |
| Contact Gender | FEMALE |
| Filter Feature | NO |
| J-STD-609 Code | e3 |
| Mixed Contacts | NO |
| Mounting Style | STRAIGHT |
| DIN Conformance | NO |
| IEC Conformance | NO |
| Insulator Color | BLACK |
| MIL Conformance | NO |
| Number of Ports | 1 |
| Body/Shell Style | JACK |
| Contact Material | BRASS |
| Termination Type | SOLDER |
| Body Depth (inch) | 0.618 |
| Mounting Option 1 | LOCKING |
| Additional Feature | 1 PORT, 8 POSITION EACH, TOP ENTRY |
| Body Length (inch) | 0.6 |
| Insulator Material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| Number of Contacts | 8 |
| Body Breadth (inch) | 0.594 |
| Durability (Cycles) | 750 |
| PCB Contact Pattern | STAGGERED |
| Terminal Pitch (mm) | 2.54 |
| UL Flammability Code | 94V-0 |
| Board Mounting Option | SPLIT BOARD LOCK |
| Terminal Length (inch) | 0.13 |
| Contact Finish - Mating | NOT SPECIFIED |
| Insertion Force-Max (N) | 20.016 |
| Contact Resistance (mohm) | 20 |
| Rated Current (Signal) (A) | 1.5 |
| Insulation Resistance (ohm) | 500000000 |
| Contact Finish - Termination | Matte Tin (Sn) - with Nickel (Ni) barrier |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Screening Level / Reference Standard | UL |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Molex, LLC 95503-2881 in the documentation section.
Conn RJ-45 RCP 8 POS 1.27mm Solder ST Thru-Hole 8 Terminal 1 Port Modular Jack 8/8, RJ45 Cat 3 Tray
95503-2881 from the subcategory Interconnects ensures strong and durable connections between components. It guarantees resistance to vibrations and frequent connections, which is particularly important in industrial and transportation systems.
Thanks to its construction, characteristic of Interconnects, 95503-2881 allows wires to be quickly connected and disconnected without additional tools. Its Conn RJ-45 RCP 8 POS 1.27mm Solder ST Thru-Hole 8 Terminal 1 Port Modular Jack 8/8, RJ45 Cat 3 Tray makes it an ideal solution for systems that require regular maintenance.
