Lead Time 18 weeks

Datasheet

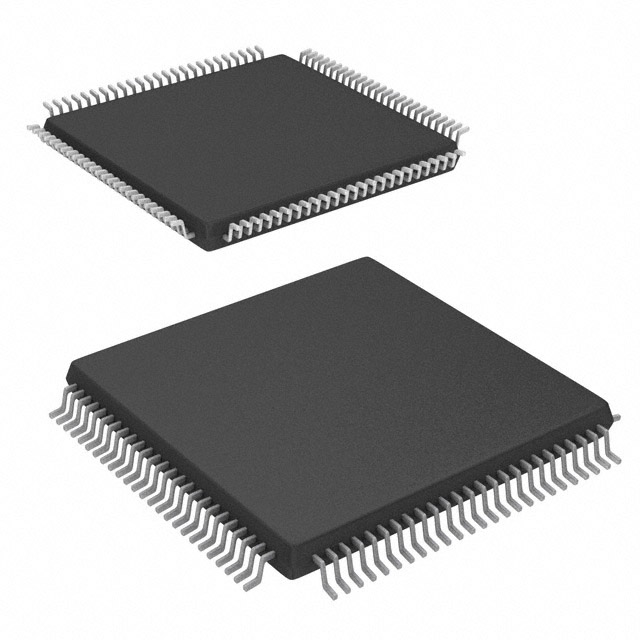

EPM7128AETC100-10N

IC CPLD 128MC 10NS 100TQFP

Request price

Technical Data

Manufacturer intel corp

MPN EPM7128AETC100-10N

Width ( mm ) 14.0000

Length ( mm ) 14.0000

JTAG BST YES

Technology CMOS

JESD-30 Code S-PQFP-G100

Organization 0 DEDICATED INPUTS, 84 I/O

Package Code LFQFP

JESD-609 Code e3

Package Shape SQUARE

Package Style ( Meter ) FLATPACK, LOW PROFILE, FINE PITCH

Surface Mount YES

Terminal Form GULL WING

Terminal Pitch ( mm ) 0.5000

Output Function MACROCELL

Terminal Finish Matte Tin (Sn) - annealed

Propagation Delay ( ns ) 10.0000

Seated Height-Max ( mm ) 1.2700

Temperature Grade COMMERCIAL

Terminal Position QUAD

Additional Feature YES

Supply Voltage-Max ( V ) 3.6000

Supply Voltage-Min ( V ) 3.0000

Supply Voltage-Nom ( V ) 3.3000

Clock Frequency-Max ( MHz ) 98.0000

Number of I/O Lines 84.0000

Number of Terminals 100.0000

Qualification Status Not Qualified

Number of Macro Cells 128.0000

Package Body Material PLASTIC/EPOXY

In-System Programmable YES

Programmable Logic Type EE PLD

Package Equivalence Code TQFP100,.63SQ

Operating Temperature-Max ( Cel ) 70.0000

Operating Temperature-Min ( Cel ) 0.0000

Moisture Sensitivity Level 3.0000

Number of Dedicated Inputs 0.0000

Peak Reflow Temperature (Cel) 260.0000

Time@Peak Reflow Temperature-Max (s) 30.0000

Availability In stock
