CM200DY-24A
Availability
Design risk
Price trend
Lead time

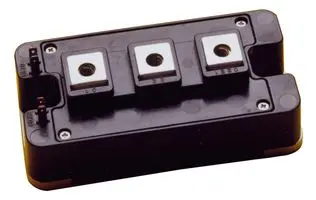

MITSUBISHI ELECTRIC - CM200DY-24A - IGBT Module, Dual [Half Bridge], 200 A, 3 V, 1.34 kW, 150 °C, Module
| Application | POWER CONTROL |
| JESD-30 Code | R-XUFM-X7 |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | FLANGE MOUNT |
| Surface Mount | NO |
| Terminal Form | UNSPECIFIED |
| VCEsat-Max (V) | 3 |
| Case Connection | ISOLATED |
| DLA Qualification | Not Qualified |
| Terminal Position | UPPER |
| Number of Elements | 2 |
| Number of Terminals | 7 |
| Package Body Material | UNSPECIFIED |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation-Max (W) | 1340 |
| Transistor Element Material | SILICON |
| Gate-emitter Voltage-Max (V) | 20 |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Collector Current-Max (IC) (A) | 200 |
| Operating Temperature-Max (Cel) | 150 |
| Collector-emitter Voltage-Max (V) | 1200 |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
