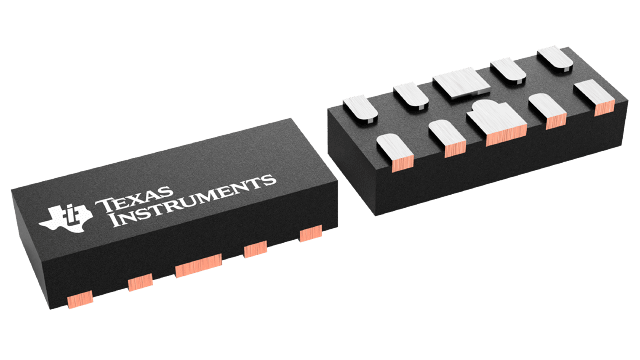

TPD4E05U06DQAR
Availability
Design risk
Price trend
Lead time
Quad 0.5-pF, 5.5-V, ±12-kV ESD protection diode for USB, HDMI & High Speed Interfaces 10-USON -40 to 125
| Polarity | UNIDIRECTIONAL |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Technology | AVALANCHE |
| JESD-30 Code | R-PDSO-N10 |
| Configuration | SINGLE, 4 CHANNEL |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE |
| Surface Mount | YES |
| Terminal Form | NO LEAD |
| J-STD-609 Code | e4 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Position | DUAL |
| Additional Feature | ULTRA LOW CAPACITANCE |
| Number of Elements | 1 |
| Number of Terminals | 10 |
| Package Body Material | PLASTIC/EPOXY |
| Diode Element Material | SILICON |
| Clamping Voltage-Max (V) | 10 |
| Reverse Current-Max (uA) | 0.01 |
| Reverse Test Voltage (V) | 2.5 |
| Breakdown Voltage-Max (V) | 8.5 |
| Breakdown Voltage-Min (V) | 6.5 |
| Breakdown Voltage-Nom (V) | 7.5 |
| Moisture Sensitivity Level | 1 |
| Peak Reflow Temperature (Cel) | 260 |
| Rep Pk Reverse Voltage-Max (V) | 5.5 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| Non-rep Peak Rev Power Dis-Max (W) | 40 |
| Screening Level / Reference Standard | IEC-61000-4-2, 4-4, 4-5 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Texas Instruments Incorporated TPD4E05U06DQAR in the documentation section.
Quad 0.5-pF, 5.5-V, ±12-kV ESD protection diode for USB, HDMI & High Speed Interfaces 10-USON -40 to 125
As part of the category Semiconductors and subcategory Semiconductors, TPD4E05U06DQAR optimizes energy distribution in electronic devices. Its Quad 0.5-pF, 5.5-V, ±12-kV ESD protection diode for USB, HDMI & High Speed Interfaces 10-USON -40 to 125 allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, TPD4E05U06DQAR ensures stable output voltage even when the load changes. Its Quad 0.5-pF, 5.5-V, ±12-kV ESD protection diode for USB, HDMI & High Speed Interfaces 10-USON -40 to 125 makes it a reliable element in multi-level power systems.
