MT47H64M16NF-25EIT:M MICRON TECHNOLOGY INC

MT47H64M16NF-25EIT:M MICRON TECHNOLOGY INC
Availability
Unavailable
MT47H64M16NF-25EIT:M Availability: Out of Stock
Design risk
Low
Design risk
Price trend
Increasing
Price trend
Lead time
Increasing
Lead time
15 results found
KLKD001.H
KLKD001.H Availability: Out of Stock
Unavailable
Low
Low
Stable
Stable
Stable
Stable
WR06X224JTL
WR06X224JTL Availability: Out of Stock
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable
HIP4081AIBZT
HIP4081AIBZT Availability: Out of Stock
Unavailable
Low
Low
Stable
Stable
Increasing
Increasing
W971GG6NB-25
W971GG6NB-25 Availability: In Stock
Available
Medium
Medium
Decreasing
Decreasing
Increasing
Increasing
EP4CE6F17C9LN
EP4CE6F17C9LN Availability: In Stock
Available
High
High
Stable
Stable
Stable
Stable
EPM240T100I5N
EPM240T100I5N Availability: In Stock
Available
High
High
Decreasing
Decreasing
Stable
Stable
SKM195GAL07E3
SKM195GAL07E3 Availability: In Stock
Available
High
High
Stable
Stable
Stable
Stable
SZNUP2242WTT1G
SZNUP2242WTT1G Availability: In Stock
Available
High
High
Stable
Stable
Increasing
Increasing
CMOZ1L8TRPBFREE
CMOZ1L8TRPBFREE Availability: In Stock
Available
Low
Low
Decreasing
Decreasing
Stable
Stable
TLV3012AQDCKRQ1
TLV3012AQDCKRQ1 Availability: In Stock
Available
Low
Low
Decreasing
Decreasing
Stable
Stable
LM5118Q1MHX/NOP...
LM5118Q1MHX/NOPB Availability: In Stock
Available
Low
Low
Decreasing
Decreasing
Stable
Stable
TPS1H200AQDGNRQ...
TPS1H200AQDGNRQ1 Availability: In Stock
Available
Low
Low
Increasing
Increasing
Stable
Stable
TCC0402COG101J5...
TCC0402COG101J500AT Availability: In Stock
Available
High
High
Stable
Stable
Stable
Stable
XC7VX485T-2FFG1...
XC7VX485T-2FFG1761I Availability: In Stock
Available
High
High
Stable
Stable
Increasing
Increasing
ELT-316SYGWA/S5...
ELT-316SYGWA/S530-E2 Availability: In Stock
Available
High
High
Stable
Stable
Stable
Stable

Semiconductors

Semiconductors

Lead Time     39 weeks

Datasheet

    Download MT47H64M16NF-25EIT:M datasheet MT47H64M16NF-25EIT:M

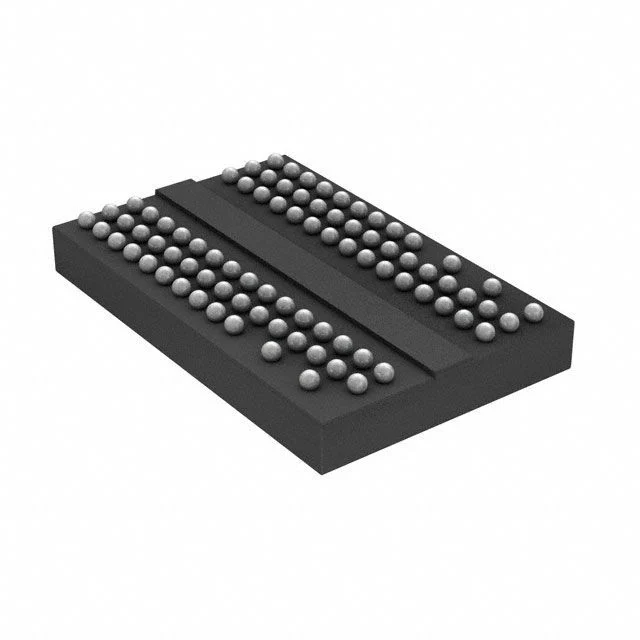

DRAM Chip DDR2 SDRAM 1Gbit 64Mx16 1.8V 84-Pin FBGA Tray

Technical Data

Manufacturer micron technology inc
MPN MT47H64M16NF-25EIT:M
I/O Type COMMON
Technology CMOS
Width (mm) 8.0000
Access Mode MULTI BANK PAGE BURST
Length (mm) 12.5000
JESD-30 Code R-PBGA-B84
Memory Width 16.0000
Package Code TFBGA
Self Refresh YES
Package Shape RECTANGULAR
Package Style GRID ARRAY, THIN PROFILE, FINE PITCH
Surface Mount YES
Terminal Form BALL
J-STD-609 Code e1
Memory IC Type DDR2 DRAM
Operating Mode SYNCHRONOUS
Refresh Cycles 8192.0000
Number of Ports 1.0000
Terminal Finish TIN SILVER COPPER
DLA Qualification Not Qualified
Terminal Position BOTTOM
Memory Organization 64MX16
Number of Functions 1.0000
Number of Terminals 84.0000
Terminal Pitch (mm) 0.8000
Access Time-Max (ns) 0.4000
Number of Words Code 64M
Memory Density (bits) 1073741824.0000
Package Body Material PLASTIC/EPOXY
Output Characteristics 3-STATE
Seated Height-Max (mm) 1.2000
Supply Voltage-Max (V) 1.9000
Supply Voltage-Min (V) 1.7000
Supply Voltage-Nom (V) 1.8000
Number of Words (words) 67108864.0000
Sequential Burst Length 4,8
Standby Current-Max (A) 0.0100
Supply Current-Max (mA) 260.0000
Interleaved Burst Length 4,8
Package Equivalence Code BGA84,9X15,32
Clock Frequency-Max (MHz) 400.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 95.0000
Operating Temperature-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock
