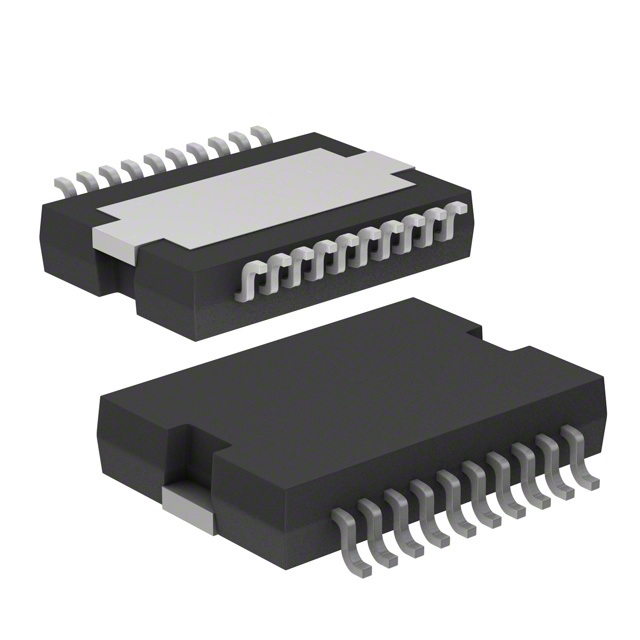

TLE6220 - FLEX: FOR POWERTRAIN APPLICATION
| Width (mm) | 11 |
| Length (mm) | 15.9 |
| JESD-30 Code | R-PDSO-G20 |
| Package Code | HSOP |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE, HEAT SINK/SLUG |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e3 |
| Terminal Finish | Tin (Sn) |
| DLA Qualification | Not Qualified |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER |
| Terminal Position | DUAL |
| Turn-on Time (us) | 10.0000000000000000 |
| Turn-off Time (us) | 10.0000000000000000 |
| Number of Functions | 1 |
| Number of Terminals | 20 |
| Terminal Pitch (mm) | 1.27 |
| Built-in Protections | TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL |
| Package Body Material | PLASTIC/EPOXY |
| Seated Height-Max (mm) | 3.5 |
| Supply Voltage-Max (V) | 5.5 |
| Supply Voltage-Min (V) | 4.5 |
| Supply Voltage-Nom (V) | 5 |
| Moisture Sensitivity Level | 3 |
| Output Current Flow Direction | SINK |
| Output Peak Current Limit-Nom (A) | 4.5000000000000000 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for INFINEON TECHNOLOGIES AG TLE6220GPAUMA2 in the documentation section.
TLE6220 - FLEX: FOR POWERTRAIN APPLICATION
As part of the category Semiconductors and subcategory Semiconductors, TLE6220GPAUMA2 optimizes energy distribution in electronic devices. Its TLE6220 - FLEX: FOR POWERTRAIN APPLICATION allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, TLE6220GPAUMA2 ensures stable output voltage even when the load changes. Its TLE6220 - FLEX: FOR POWERTRAIN APPLICATION makes it a reliable element in multi-level power systems.
