PESD2IVN24-TR

NEXPERIA

no image

PESD2IVN24-TR

PESD2IVN24-TR

Availability
Constrained
Availability
Design risk
Low
Design risk
Price trend
Stable
Price trend
Lead time
Increasing
Lead time

15 results found
5054731010
Available
Available
High
High
Decreasing
Decreasing
Stable
Stable
AS5040-ASST
Available
Available
Low
Low
Decreasing
Decreasing
Stable
Stable
SMBJ5343B-TP
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
TPS61093DSKR
Constrained
Constrained
Low
Low
Increasing
Increasing
Stable
Stable
0402B102K500CT
Constrained
Constrained
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
0603B104K160CT
Constrained
Constrained
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
0603N220J500CG
Constrained
Constrained
High
High
Stable
Stable
Stable
Stable
0603N8R2D500CT
Available
Available
Low
Low
Decreasing
Decreasing
Increasing
Increasing
C42Q2104K6WC450
Available
Available
High
High
Stable
Stable
Stable
Stable
IA82527PQF44AR2
Unavailable
Unavailable
High
High
Stable
Stable
Stable
Stable
MSP430F2232IRHA...
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable
CC0603KRX7R9BB1...
Unavailable
Unavailable
Low
Low
Stable
Stable
Stable
Stable
S29GL256S90TFI0...
Unavailable
Unavailable
Low
Low
Increasing
Increasing
Stable
Stable
GRM21BR71C475KA...
Unavailable
Unavailable
High
High
Decreasing
Decreasing
Decreasing
Decreasing
TLE98722QXA40XU...
Available
Available
High
High
Stable
Stable
Stable
Stable

Semiconductors

Transient Suppressors

Lead Time     8 weeks

ESD protection for In-vehicle networks

Technical Data

Manufacturer nexperia
MPN PESD2IVN24-TR
Polarity BIDIRECTIONAL
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Technology AVALANCHE
JESD-30 Code R-PDSO-G3
Configuration Dual

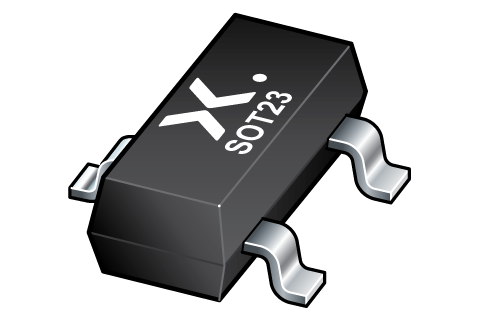

JEDEC-95 Code TO-236AB
Package Shape RECTANGULAR
Package Style TO-236AB
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e3
Terminal Finish Tin (Sn)
Terminal Position DUAL
Additional Feature ISO 7637-3
Number of Elements 2.0000
Number of Terminals 3.0000
Package Body Material PLASTIC/EPOXY
Diode Element Material SILICON
Clamping Voltage-Max (V) 42.0000
Reverse Current-Max (uA) 0.0500
Reverse Test Voltage (V) 24.0000
Breakdown Voltage-Max (V) 35.5000
Breakdown Voltage-Min (V) 25.5000
Breakdown Voltage-Nom (V) 30.5000
Moisture Sensitivity Level 1.0000
Peak Reflow Temperature (Cel) 260.0000
Rep Pk Reverse Voltage-Max (V) 24.0000
Operating Temperature-Max (Cel) 150.0000
Operating Temperature-Min (Cel) -55.0000
Non-rep Peak Rev Power Dis-Max (W) 147.0000
Screening Level / Reference Standard IEC-60134; IEC-61000-4-2, 4-5; ISO 10605
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Transient Suppressors, PESD2IVN24-TR optimizes energy distribution in electronic devices. Its ESD protection for In-vehicle networks allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Transient Suppressors, PESD2IVN24-TR ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for PESD2IVN24-TR in the documentation section.

ESD protection for In-vehicle networks
