DF50-40DP-1H(51)
Availability
Design risk
Price trend
Lead time

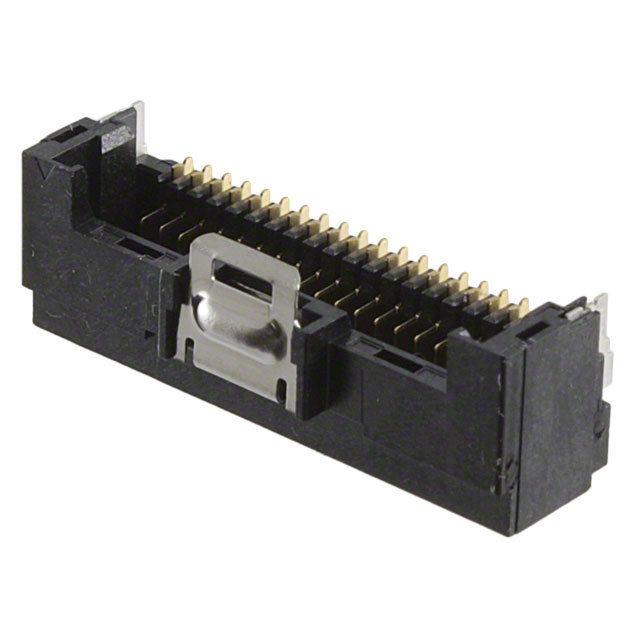

CONN HEADER SMD R/A 40POS 1MM
| Contact Style | BLADE PIN-SKT |
| Mounting Type | BOARD |
| Connector Type | BOARD CONNECTOR |
| Contact Gender | MALE |
| Filter Feature | NO |
| J-STD-609 Code | e4 |
| Mixed Contacts | NO |
| Mounting Style | RIGHT ANGLE |
| Contact Pattern | RECTANGULAR |
| Insulator Color | BLACK |
| Contact Material | NOT SPECIFIED |
| Polarization Key | POLARIZED HOUSING |
| Termination Type | SURFACE MOUNT |
| Mounting Option 1 | LOCKING |
| Insulator Material | LIQUID CRYSTAL POLYMER |
| Number of Contacts | 40 |
| Number of PCB Rows | 2 |
| Durability (Cycles) | 30 |
| PCB Contact Pattern | RECTANGULAR |
| Terminal Pitch (mm) | .9906 |
| Number of Connectors | ONE |
| Board Mounting Option | SOLDER HOLDING FLANGE |
| Number of Rows Loaded | 2 |
| Contact Finish - Mating | NOT SPECIFIED |
| Contact Resistance (mohm) | 30.000000000000000 |
| Rated Current (Signal) (A) | 1.0000000000000000 |
| Insulation Resistance (ohm) | 500000000.000000000000000 |
| Mating Contact Pitch (inch) | 0.039 |
| Contact Finish - Termination | Gold (Au) |
| PCB Contact Row Spacing (mm) | 5.6896 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -35 |
| Dielectric Withstanding Voltage (V) | 300VAC |
| Screening Level / Reference Standard | UL |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for HIROSE ELECTRIC CO., LTD. DF50-40DP-1H(51) in the documentation section.
CONN HEADER SMD R/A 40POS 1MM
DF50-40DP-1H(51) from the subcategory Interconnects ensures strong and durable connections between components. It guarantees resistance to vibrations and frequent connections, which is particularly important in industrial and transportation systems.
Thanks to its construction, characteristic of Interconnects, DF50-40DP-1H(51) allows wires to be quickly connected and disconnected without additional tools. Its CONN HEADER SMD R/A 40POS 1MM makes it an ideal solution for systems that require regular maintenance.
