Semiconductors

Transistors

Lead Time     14 weeks
Data Sheet     Download ZXTN2010ZTA datasheet ZXTN2010ZTA

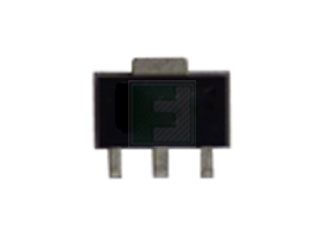

Trans GP BJT NPN 60V 5A 4-Pin(3+Tab) SOT-89 T/R

Technical Data

Manufacturer DIODES INC
MPN ZXTN2010ZTA
Application SWITCHING
JESD-30 Code R-PSSO-F3
Configuration Single
Package Shape RECTANGULAR
Package Style SOT-89 (SC-62)
Surface Mount YES
Terminal Form FLAT
J-STD-609 Code e3
VCEsat-Max (V) 0.2300
Case Connection COLLECTOR
Terminal Finish MATTE TIN
DLA Qualification Not Qualified
Terminal Position SINGLE
Number of Elements 1.0000
Number of Terminals 3.0000
Package Body Material PLASTIC/EPOXY
Polarity/Channel Type NPN
DC Current Gain-Min (hFE) 20.0000
Power Dissipation-Max (W) 2.1000
Moisture Sensitivity Level 1.0000
Transistor Element Material SILICON
Peak Reflow Temperature (Cel) 260.0000
Collector Current-Max (IC) (A) 5.0000
Operating Temperature-Max (Cel) 150.0000
Operating Temperature-Min (Cel) -55.0000
Collector-emitter Voltage-Max (V) 60.0000
Collector-base Capacitance-Max (pF) 31.0000
Transition Frequency-Nom (fT) (MHz) 130.0000
Screening Level / Reference Standard MIL-STD-202
Time@Peak Reflow Temperature-Max (s) 30.0000
Width 2.6 mm
Length 4.6 mm
Availability In stock
