Semiconductors

Other Interface ICs

Lead Time     10 weeks

Datasheet

    Download MAX253ESA+T datasheet MAX253ESA+T

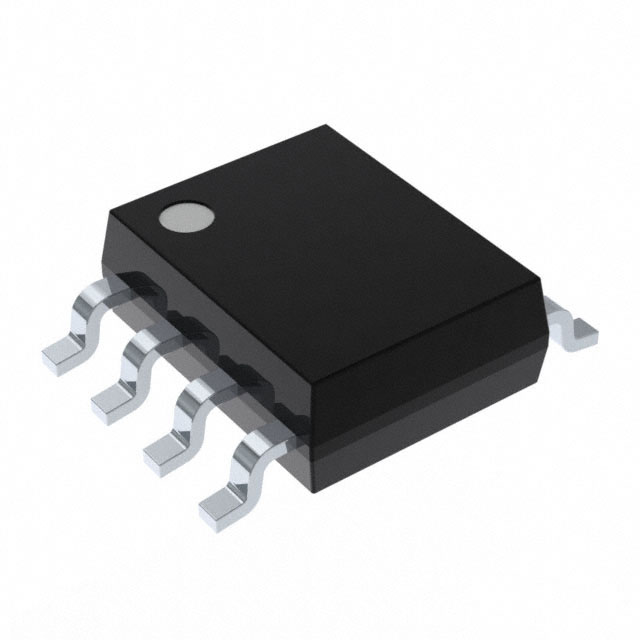

1W Primary-Side Transformer H-Bridge Driver for Isolated Supplies

Technical Data

Manufacturer analog devices inc
MPN MAX253ESA+T
Technology CMOS
Width (mm) 3.9000
Length (mm) 4.9000
JESD-30 Code R-PDSO-G8
Package Code SOP
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e3
Terminal Finish Matte Tin (Sn) - annealed
DLA Qualification Not Qualified
Interface IC Type INTERFACE CIRCUIT
Temperature Grade INDUSTRIAL
Terminal Position DUAL
Number of Functions 1.0000
Number of Terminals 8.0000
Terminal Pitch (mm) 1.2700
Package Body Material PLASTIC/EPOXY
Seated Height-Max (mm) 1.7500
Supply Voltage-Max (V) 5.5000
Supply Voltage-Min (V) 4.5000
Supply Voltage-Nom (V) 5.0000
Package Equivalence Code SOP8,.25
Moisture Sensitivity Level 1.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock
