TPS65217CRSLR

TEXAS INSTRUMENTS INC

TPS65217CRSLR

TPS65217CRSLR

TPS65217CRSLR

Availability
Constrained
Availability
Design risk
Low
Design risk
Price trend
Increasing
Price trend
Lead time
Stable
Lead time
15 results found
K5ATGN43GP
Unavailable
Unavailable
Low
Low
Stable
Stable
Stable
Stable
WR06X330JTL
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable
CR32-3600-FL
Unavailable
Unavailable
Low
Low
Stable
Stable
Stable
Stable
MAX823TEUK+T
Available
Available
Medium
Medium
Stable
Stable
Increasing
Increasing
WR06X1103FTL
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable
74CBTLV3257QG
Available
Available
Medium
Medium
Decreasing
Decreasing
Increasing
Increasing
VS-40TPS12-M3
Available
Available
Low
Low
Increasing
Increasing
Decreasing
Decreasing
0805N102J500CT
Available
Available
High
High
Stable
Stable
Stable
Stable
SARA-R422S-01B
Available
Available
High
High
Stable
Stable
Increasing
Increasing
PEX8724-CA80BCG
Available
Available
Low
Low
Stable
Stable
Stable
Stable
RK73H1JTTD93R1F
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable
ADP5300ACPZ-2-R...
Available
Available
Medium
Medium
Increasing
Increasing
Stable
Stable
JMK212BBJ476MG-...
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Increasing
Increasing
SPM5020T-6R8M-L...
Available
Available
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
C1608X5R1C225K0...
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable

Semiconductors

Other Semiconductors

Lead Time     12 weeks
Data Sheet     Download TPS65217CRSLR datasheet TPS65217CRSLR

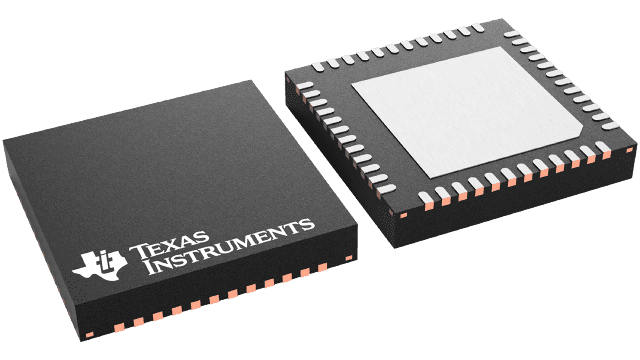

Power Management IC (PMIC) w/ 3 DC/DCs, 4 LDOs, linear battery charger & white LED driver 48-VQFN -40 to 105

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN TPS65217CRSLR
Width (mm) 6.0000
Length (mm) 6.0000
JESD-30 Code S-PQCC-N48
Package Code HVQCCN
Package Shape SQUARE
Package Style ( Meter ) CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Surface Mount YES
Terminal Form NO LEAD
J-STD-609 Code e4
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
DLA Qualification Not Qualified
Number of Outputs 9.0000
Temperature Grade INDUSTRIAL
Terminal Position QUAD
Additional Feature DETECTION THRESHOLD VOLTAGE IS 6 VOLT; ALSO OPERATES IN BATTERY INPUT VOLTAGE FROM 0 TO 5.5 VOLT
Number of Channels 1.0000
Number of Functions 1.0000
Number of Terminals 48.0000
Terminal Pitch (mm) 0.4000
Adjustable Threshold YES
Input Voltage-Max (V) 5.8000
Input Voltage-Min (V) 2.7500
Package Body Material PLASTIC/EPOXY
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Output Current-Max (A) 1.2000
Output Voltage-Max (V) 3.3000
Output Voltage-Min (V) 0.9000
Seated Height-Max (mm) 1.0000
Supply Voltage-Max (V) 5.8000
Supply Voltage-Min (V) 2.7500
Supply Voltage-Nom (V) 3.6000
Supply Current-Max (mA) 2000.0000
Package Equivalence Code LCC48,.24SQ,16
Threshold Voltage-Nom (V) +1.5V
Moisture Sensitivity Level 3.0000
Peak Reflow Temperature (Cel) 260.0000
Switching Frequency-Max (kHz) 2550.0000
Operating Temperature-Max (Cel) 105.0000
Operating Temperature-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Other Semiconductors, TPS65217CRSLR optimizes energy distribution in electronic devices. Its Power Management IC (PMIC) w/ 3 DC/DCs, 4 LDOs, linear battery charger & white LED driver 48-VQFN -40 to 105 allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Other Semiconductors, TPS65217CRSLR ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for TPS65217CRSLR in the documentation section.

Power Management IC (PMIC) w/ 3 DC/DCs, 4 LDOs, linear battery charger & white LED driver 48-VQFN -40 to 105
