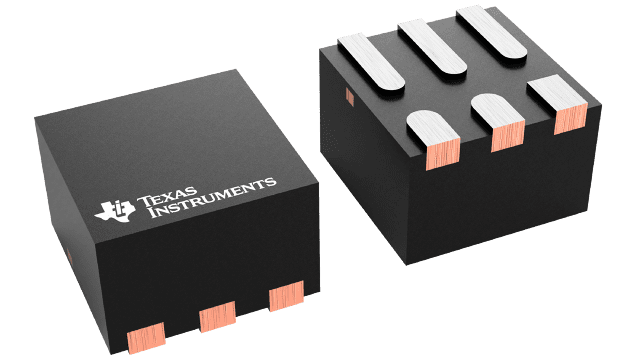

TPS62825DMQR

TEXAS INSTRUMENTS INC

TPS62825DMQR

TPS62825DMQR

TPS62825DMQR

Availability
Constrained
Availability
Design risk
Low
Design risk
Price trend
Increasing
Price trend
Lead time
Stable
Lead time
15 results found
WR12X681JTL
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable
MAX823TEUK+T
Available
Available
Medium
Medium
Stable
Stable
Increasing
Increasing
SMBJ5347B-TP
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
SS10U100PQF1
Available
Available
High
High
Stable
Stable
Stable
Stable
WR04X1242FTL
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable
WR04X5620FTL
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
WR06X4701FGL
Unavailable
Unavailable
Low
Low
Increasing
Increasing
Stable
Stable
1210B475K101CT
Constrained
Constrained
Low
Low
Decreasing
Decreasing
Increasing
Increasing
2220B106M101CT
Available
Available
High
High
Stable
Stable
Stable
Stable
RC0402FR-072K2L
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable
PJQ4463AP_R2_00...
Available
Available
High
High
Decreasing
Decreasing
Decreasing
Decreasing
TLE98722QXA40XU...
Available
Available
High
High
Stable
Stable
Stable
Stable
YU1AH472M130DAM...
Constrained
Constrained
Low
Low
Stable
Stable
Stable
Stable
CD8069504212601...
Available
Available
High
High
Stable
Stable
Stable
Stable
SM02B-LEASS-TF(...
Available
Available
Low
Low
Stable
Stable
Stable
Stable

Semiconductors

Other Semiconductors

Lead Time     12 weeks
Data Sheet     Download TPS62825DMQR datasheet TPS62825DMQR

2.4-V to 5.5-V input, 2-A step-down converter with 1% accuracy in 1.5-mm x 1.5-mm QFN 6-VSON-HR -40 to 125

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN TPS62825DMQR
Width (mm) 1.5000
Length (mm) 1.5000
Control Mode CURRENT-MODE
JESD-30 Code S-PDSO-N6
Package Code HVSON
Package Shape SQUARE
Package Style ( Meter ) SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Surface Mount YES
Terminal Form NO LEAD
J-STD-609 Code e3
Terminal Finish Tin (Sn)
Control Technique PULSE WIDTH MODULATION
Number of Outputs 1.0000
Temperature Grade AUTOMOTIVE
Terminal Position DUAL
Additional Feature ADJUSTABLE OUTPUT VOLTAGE RANGE IS 0.6 TO 4 V
Number of Functions 1.0000
Number of Terminals 6.0000
Terminal Pitch (mm) 0.5000
Input Voltage-Max (V) 5.5000
Input Voltage-Min (V) 2.4000
Input Voltage-Nom (V) 5.0000
Package Body Material PLASTIC/EPOXY
Analog IC - Other Type SWITCHING REGULATOR
Output Current-Max (A) 2.0000
Output Voltage-Max (V) 4.0000
Output Voltage-Min (V) 0.6000
Seated Height-Max (mm) 1.0000
Switcher Configuration BUCK
Package Equivalence Code SOLCC6,.06,20
Moisture Sensitivity Level 1.0000
Peak Reflow Temperature (Cel) 260.0000
Switching Frequency-Max (kHz) 2200.0000
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Other Semiconductors, TPS62825DMQR optimizes energy distribution in electronic devices. Its 2.4-V to 5.5-V input, 2-A step-down converter with 1% accuracy in 1.5-mm x 1.5-mm QFN 6-VSON-HR -40 to 125 allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Other Semiconductors, TPS62825DMQR ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for TPS62825DMQR in the documentation section.

2.4-V to 5.5-V input, 2-A step-down converter with 1% accuracy in 1.5-mm x 1.5-mm QFN 6-VSON-HR -40 to 125
