Lead Time     12 weeks
Data Sheet     Download SN74LVC1G00DCKR datasheet SN74LVC1G00DCKR

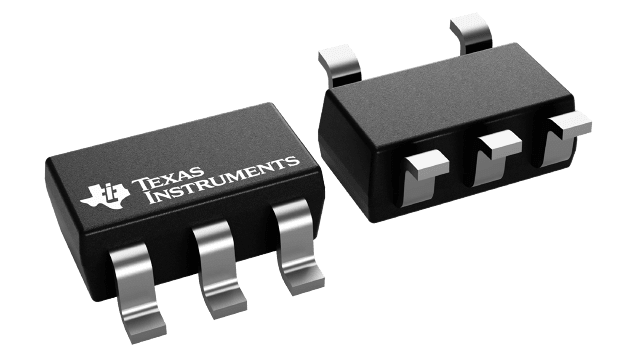

Single 2-input, 1.65-V to 5.5-V NAND gate 5-SC70 -40 to 125

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN SN74LVC1G00DCKR
Family LVC/LCX/Z
Technology CMOS
Width (mm) 1.2500
Length (mm) 2.0000
JESD-30 Code R-PDSO-G5
Package Code TSSOP
Logic IC Type NAND GATE
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e4
Packing Method TR
Schmitt Trigger NO
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Inputs 2.0000
DLA Qualification Not Qualified
Temperature Grade AUTOMOTIVE
Terminal Position DUAL
Number of Functions 1.0000
Number of Terminals 5.0000
Terminal Pitch (mm) 0.6500
Load Capacitance (pF) 50.0000
Package Body Material PLASTIC/EPOXY
Propagation Delay (ns) 9.0000
Seated Height-Max (mm) 1.1000
Supply Voltage-Max (V) 5.5000
Supply Voltage-Min (V) 1.6500
Supply Voltage-Nom (V) 3.3000
Supply Current-Max (mA) 0.0100
Package Equivalence Code TSSOP5/6,.08
Moisture Sensitivity Level 1.0000
Output Low Current-Max (mA) 32.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -40.0000
Propagation Delay-Max@Nom-Sup (ns) 4.7000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock
