Interconnects

Headers and Edge Type Connectors

Data Sheet     Download 973031 datasheet 973031

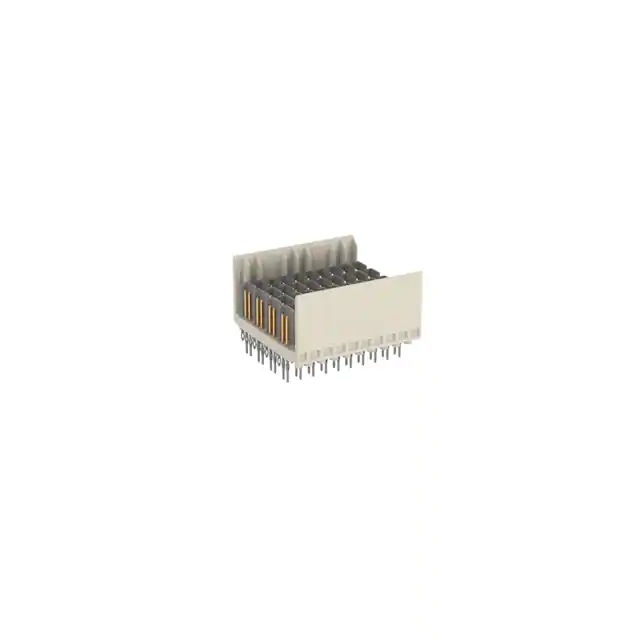

ZD M 4-10 40POS 3.7MM

Technical Data

Manufacturer erni electronics inc
MPN 973031.0000
Option GENERAL PURPOSE
Body Depth ( inch ) 0.5280
Durability ( Cycles ) 250.0000
Body Length ( inch ) 0.9820
Body Breadth ( inch ) 0.9210
Contact Style SQ PIN-SKT
Mounting Type BOARD
Connector Type BOARD CONNECTOR
Contact Gender MALE
Filter Feature NO
Mixed Contacts NO
Mounting Style STRAIGHT
Terminal Pitch ( mm ) 2.5000
Contact Pattern RECTANGULAR
DIN Conformance NO
IEC Conformance NO
MIL Conformance NO
Terminal Length ( inch ) 0.0670
Contact Material NOT SPECIFIED
Termination Type PRESS FIT
Plating Thickness ( inch ) 4u
Additional Feature 40 GROUND SHIELD CONTACTS AVAILABLE
Contact Resistance ( mohm ) 50.0000
Insulator Material LIQUID CRYSTAL POLYMER
Mating Information MULTIPLE MATING PARTS AVAILABLE
Number Of PCB Rows 12.0000
Reference Standard UL
Insertion Force-Max ( N ) 0.6950
PCB Contact Pattern RECTANGULAR
Withdrawl Force-Min ( N ) 0.1390
Mating Contact Pitch ( inch ) 0.0980
Number Of Connectors ONE
UL Flammability Code 94V-0
Insulation Resistance ( ohm ) 10000000000.0000
Number of Rows Loaded 8.0000
Rated Current (Signal) ( A ) 0.9000
Contact Finish - Mating NOT SPECIFIED
PCB Contact Row Spacing ( mm ) 1.4986
Total Number of Contacts 80.0000
Operating Temperature-Max ( Cel ) 125.0000
Operating Temperature-Min ( Cel ) -55.0000
Mating Contact Row Spacing ( inch ) 0.0590
Dielectric Withstanding Voltage ( V ) 700VAC
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

973031 from the subcategory Headers and Edge Type Connectors ensures strong and durable connections between components. It guarantees resistance to vibrations and frequent connections, which is particularly important in industrial and transportation systems.

Thanks to its construction, characteristic of Headers and Edge Type Connectors, 973031 allows wires to be quickly connected and disconnected without additional tools. Its ZD M 4-10 40POS 3.7MM, makes it an ideal solution for systems that require regular maintenance.

You can download the user manual and technical specifications for 973031 in the documentation section.
