Lead Time     12 weeks
Data Sheet     Download SN74HC595DR datasheet SN74HC595DR

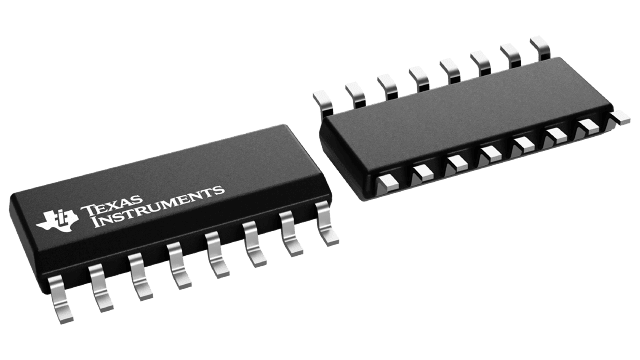

8-bit shift registers with 3-state output registers 16-SOIC -40 to 85

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN SN74HC595DR
Family HC/UH
Direction RIGHT
Technology CMOS
Width (mm) 3.9000
Length (mm) 9.9000
JESD-30 Code R-PDSO-G16
Package Code SOP
Trigger Type POSITIVE EDGE
Logic IC Type SERIAL IN PARALLEL OUT
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e4
Number of Bits 8.0000
Packing Method TR
fmax-Min (MHz) 24.0000
Output Polarity TRUE
Schmitt Trigger NO
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
DLA Qualification Not Qualified
Temperature Grade INDUSTRIAL
Terminal Position DUAL
Additional Feature PARALLEL OUTPUT IS REGISTERED; UNREGISTERED SERIAL SHIFT RIGHT OUTPUT
Number of Functions 1.0000
Number of Terminals 16.0000
Terminal Pitch (mm) 1.2700
Load Capacitance (pF) 50.0000
Package Body Material PLASTIC/EPOXY
Output Characteristics 3-STATE
Propagation Delay (ns) 200.0000
Seated Height-Max (mm) 1.7500
Supply Voltage-Max (V) 6.0000
Supply Voltage-Min (V) 2.0000
Supply Voltage-Nom (V) 5.0000
Supply Current-Max (mA) 0.0800
Package Equivalence Code SOP16,.25
Frequency-Max@Nom-Sup (Hz) 25000000.0000
Moisture Sensitivity Level 1.0000
Output Low Current-Max (mA) 7.8000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
Propagation Delay-Max@Nom-Sup (ns) 34.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Number of Elements 1.0000
Availability In stock
