Lead Time     12 weeks
Data Sheet     Download SN65HVD1780DR datasheet SN65HVD1780DR

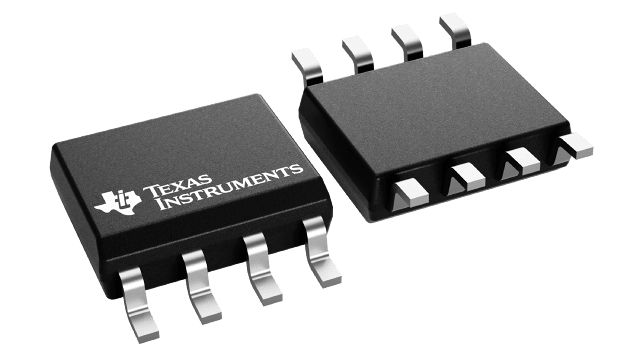

70-V Fault-Protected RS-485 Transceiver 8-SOIC -40 to 105

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN SN65HVD1780DR
Width (mm) 3.9000
Length (mm) 4.9000
JESD-30 Code R-PDSO-G8
Package Code SOP
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e4
Output Polarity COMPLEMENTARY
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
DLA Qualification Not Qualified
Interface IC Type LINE TRANSCEIVER
Out Swing-Min (V) 0.8000
Temperature Grade INDUSTRIAL
Terminal Position DUAL
Interface Standard EIA-485-A; TIA-485-A
Differential Output YES
Number of Functions 1.0000
Number of Terminals 8.0000
Terminal Pitch (mm) 1.2700
Driver Number of Bits 1.0000
Input Characteristics DIFFERENTIAL SCHMITT TRIGGER
Package Body Material PLASTIC/EPOXY
Output Characteristics DIFFERENTIAL
Receive Delay-Max (ns) 200.0000
Seated Height-Max (mm) 1.7500
Supply Voltage-Max (V) 5.5000
Supply Voltage-Min (V) 3.1500
Supply Voltage-Nom (V) 5.0000
Receiver Number of Bits 1.0000
Supply Current-Max (mA) 6.0000
Supply Voltage1-Max (V) 5.5000
Supply Voltage1-Min (V) 3.1500
Supply Voltage1-Nom (V) 5.0000
Transmit Delay-Max (ns) 2000.0000
Package Equivalence Code SOP8,.25
Moisture Sensitivity Level 1.0000
Output Low Current-Max (mA) 8.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 105.0000
Operating Temperature-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock
