Lead Time     12 weeks
Data Sheet     Download LM7301IM5X/NOPB datasheet LM7301IM5X/NOPB

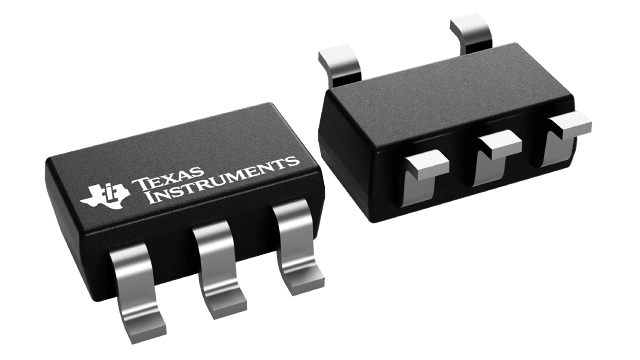

Single, 30-V, 4-MHz operational amplifier 5-SOT-23 -40 to 85

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN LM7301IM5X/NOPB
Power NO
Low-Bias NO
Wideband NO
Low-Offset NO
Micropower NO
Technology CMOS
Width (mm) 1.6000
Length (mm) 2.9000
JESD-30 Code R-PDSO-G5
Package Code LSSOP
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Surface Mount YES
Terminal Form GULL WING
Amplifier Type General Purpose
J-STD-609 Code e3
Packing Method TR
Terminal Finish Matte Tin (Sn)
Amp Architecture VOLTAGE-FEEDBACK
Voltage Gain-Min 6500.0000
DLA Qualification Not Qualified
Temperature Grade INDUSTRIAL
Terminal Position DUAL
Programmable Power NO
Number of Functions 1.0000
Number of Terminals 5.0000
Terminal Pitch (mm) 0.9500
Slew Rate-Nom (V/us) 1.2500
Package Body Material PLASTIC/EPOXY
Frequency Compensation YES
Seated Height-Max (mm) 1.4500
Supply Voltage-Nom (V) 2.2000
Supply Current-Max (mA) 1.1000
Unity Gain BW-Nom (kHz) 4000.0000
Package Equivalence Code TSOP5/6,.11,37
Moisture Sensitivity Level 1.0000
Supply Voltage Limit-Max (V) 35.0000
Input Offset Voltage-Max (uV) 6000.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
Bias Current-Max (IIB) @25C (uA) 0.2000
Common-mode Reject Ratio-Min (dB) 70.0000
Common-mode Reject Ratio-Nom (dB) 93.0000
Average Bias Current-Max (IIB) (uA) 0.2500
Input Offset Current-Max (IIO) (uA) 0.0650
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock
