Lead Time     12 weeks
Data Sheet     Download LM5118Q1MHX/NOPB datasheet LM5118Q1MHX/NOPB

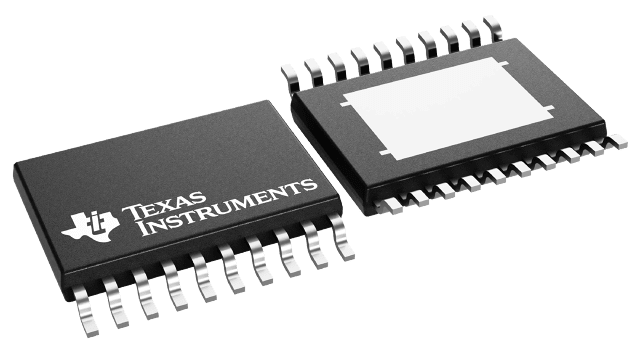

3-V to 75-V wide VIN, current mode non-synchronous buck-boost controller 20-HTSSOP -40 to 125

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN LM5118Q1MHX/NOPB
Width (mm) 4.4000
Length (mm) 6.5000
Control Mode CURRENT-MODE
JESD-30 Code R-PDSO-G20
Package Code HSSOP
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e3
Terminal Finish Matte Tin (Sn)
Control Technique PULSE WIDTH MODULATION
DLA Qualification Not Qualified
Temperature Grade AUTOMOTIVE
Terminal Position DUAL
Number of Functions 1.0000
Number of Terminals 20.0000
Terminal Pitch (mm) 0.6500
Input Voltage-Max (V) 75.0000
Input Voltage-Min (V) 3.0000
Input Voltage-Nom (V) 48.0000
Package Body Material PLASTIC/EPOXY
Analog IC - Other Type SWITCHING CONTROLLER
Output Current-Max (A) 10.0000
Output Voltage-Max (V) 70.0000
Output Voltage-Min (V) 1.2300
Switcher Configuration BUCK-BOOST
Package Equivalence Code TSSOP20,.25
Moisture Sensitivity Level 1.0000
Peak Reflow Temperature (Cel) 260.0000
Switching Frequency-Max (kHz) 500.0000
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -40.0000
Screening Level / Reference Standard AEC-Q100
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request
