Semiconductors

Converters

Lead Time     12 weeks
Data Sheet     Download ADS7828E/2K5 datasheet ADS7828E/2K5

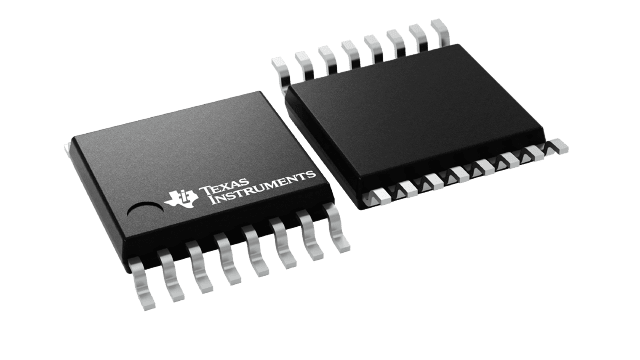

12-Bit, 8-Channel SAR ADC with Internal Reference and I2C Interface 16-TSSOP -40 to 85

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN ADS7828E/2K5
Technology CMOS
Width (mm) 4.4000
Length (mm) 5.0000
JESD-30 Code R-PDSO-G16
Package Code TSSOP
Output Format SERIAL
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Surface Mount YES
Terminal Form GULL WING
Converter Type ADC, SUCCESSIVE APPROXIMATION
J-STD-609 Code e4
Number of Bits 12.0000
Output Bit Code BINARY
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
DLA Qualification Not Qualified
Sample Rate (MHz) 0.0500
Temperature Grade INDUSTRIAL
Terminal Position DUAL
Number of Functions 1.0000
Number of Terminals 16.0000
Terminal Pitch (mm) 0.6500
Package Body Material PLASTIC/EPOXY
Seated Height-Max (mm) 1.2000
Supply Voltage-Min (V) 2.7000
Supply Voltage-Nom (V) 5.0000
Package Equivalence Code TSSOP16,.25
Moisture Sensitivity Level 1.0000
Analog Input Voltage-Max (V) 5.2500
Analog Input Voltage-Min (V) 0.0000
Linearity Error-Max (EL) (%) 0.0488
Number of Analog In Channels 8.0000
Peak Reflow Temperature (Cel) 260.0000
Sample-and-Hold/Track-and-Hold SAMPLE
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Configuration MUX-S/H-ADC
Availability In stock
