UCC27517DBVR
Availability
Design risk
Price trend
Lead time

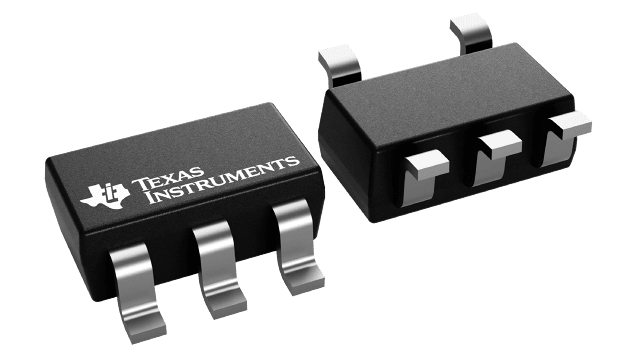

4-A/4-A single-channel gate driver with 5-V UVLO and 13-ns prop delay in SOT-23 package 5-SOT-23 -40 to 140
| Technology | BICMOS |
| Width (mm) | 1.6 |
| Length (mm) | 2.9 |
| JESD-30 Code | R-PDSO-G5 |
| Package Code | LSSOP |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Output Polarity | COMPLEMENTARY |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| High Side Driver | NO |
| DLA Qualification | Not Qualified |
| Interface IC Type | BUFFER OR INVERTER BASED MOSFET DRIVER |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Turn-on Time (us) | 0.0300000000000000 |
| Number of Channels | 1 |
| Turn-off Time (us) | 0.0300000000000000 |
| Number of Functions | 1 |
| Number of Terminals | 5 |
| Terminal Pitch (mm) | 0.95 |
| Input Characteristics | SCHMITT TRIGGER |
| Package Body Material | PLASTIC/EPOXY |
| Output Characteristics | STANDARD |
| Output Current-Max (A) | 4 |
| Seated Height-Max (mm) | 1.45 |
| Supply Voltage-Max (V) | 18 |
| Supply Voltage-Min (V) | 4.5 |
| Supply Voltage-Nom (V) | 12 |
| Package Equivalence Code | TSOP5/6,.11,37 |
| Moisture Sensitivity Level | 1 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 140 |
| Operating Temperature-Min (Cel) | -40 |
| Output Peak Current Limit-Nom (A) | 4.0000000000000000 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Texas Instruments Incorporated UCC27517DBVR in the documentation section.
4-A/4-A single-channel gate driver with 5-V UVLO and 13-ns prop delay in SOT-23 package 5-SOT-23 -40 to 140
As part of the category Semiconductors and subcategory Semiconductors, UCC27517DBVR optimizes energy distribution in electronic devices. Its 4-A/4-A single-channel gate driver with 5-V UVLO and 13-ns prop delay in SOT-23 package 5-SOT-23 -40 to 140 allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, UCC27517DBVR ensures stable output voltage even when the load changes. Its 4-A/4-A single-channel gate driver with 5-V UVLO and 13-ns prop delay in SOT-23 package 5-SOT-23 -40 to 140 makes it a reliable element in multi-level power systems.
