Semiconductors

Other Semiconductors

Lead Time     12 weeks

Datasheet

    Download TPSM84209RKHR datasheet TPSM84209RKHR

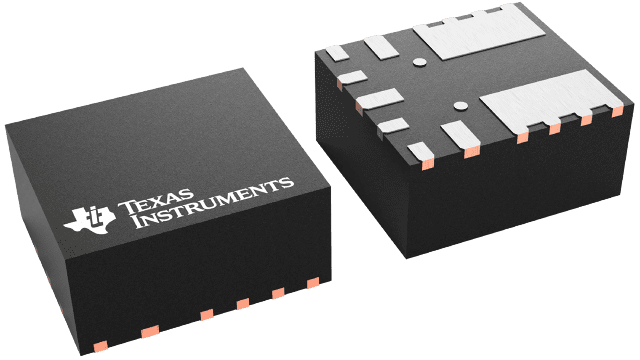

4.5-V to 28-V input, 1.2-V to 6-V output, 2.5-A power module 9-QFN-FCMOD -40 to 85

Technical Data

Manufacturer texas instruments inc
MPN TPSM84209RKHR
Width (mm) 4.0000
Length (mm) 4.5000
Control Mode CURRENT-MODE
JESD-30 Code R-PQCC-N9
Package Code QCCN
Package Shape RECTANGULAR
Package Style ( Meter ) CHIP CARRIER
Surface Mount YES
Terminal Form NO LEAD
J-STD-609 Code e3
Terminal Finish Tin (Sn)
Control Technique PULSE WIDTH MODULATION
Number of Outputs 1.0000
Temperature Grade INDUSTRIAL
Terminal Position QUAD
Number of Functions 1.0000
Number of Terminals 9.0000
Input Voltage-Max (V) 28.0000
Input Voltage-Min (V) 4.5000
Input Voltage-Nom (V) 12.0000
Package Body Material PLASTIC/EPOXY
Analog IC - Other Type SWITCHING REGULATOR
Output Current-Max (A) 2.5000
Output Voltage-Max (V) 6.0000
Output Voltage-Min (V) 1.2000
Output Voltage-Nom (V) 3.3000
Seated Height-Max (mm) 2.1000
Switcher Configuration BUCK-BOOST
Moisture Sensitivity Level 3.0000
Peak Reflow Temperature (Cel) 260.0000
Switching Frequency-Max (kHz) 923.0000
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock
