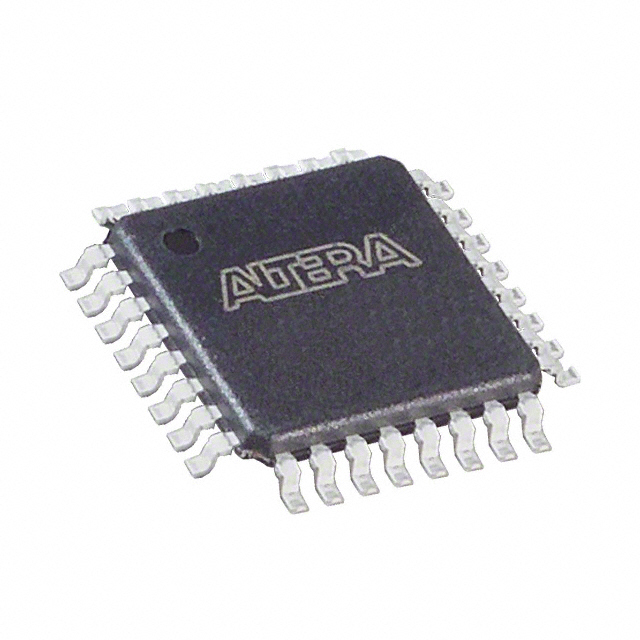

EPC2TI32N
Availability
Design risk
Price trend
Lead time
FPGA - Configuration Memory IC - Ser. Config Mem Flash 1.6Mb 10 MHz
| Width (mm) | 7 |
| Length (mm) | 7 |
| Technology | CMOS |
| JESD-30 Code | S-PQFP-G32 |
| Memory Width | 1 |
| Organization | 1695680X1 |
| Package Code | TQFP |
| JESD-609 Code | e3 |
| Package Shape | SQUARE |
| Package Style (Meter) | FLATPACK, THIN PROFILE |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| Memory Density (bit) | 1695680 |
| Memory IC Type | CONFIGURATION MEMORY |
| Operating Mode | SYNCHRONOUS |
| Terminal Pitch (mm) | 0.8 |
| Number of Words (words) | 1695680 |
| Parallel/Serial | SERIAL |
| Terminal Finish | MATTE TIN |
| Seated Height-Max (mm) | 1.2 |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | QUAD |
| Additional Feature | IT ALSO REQUIRES 5V NOMINAL SUPPLY |
| Supply Current-Max (mA) | 50 |
| Number of Functions | 1 |
| Number of Terminals | 32 |
| Programming Voltage (V) | 3.3 |
| Standby Current-Max (Amp) | 0.0001 |
| Number of Words Code | 1695680 |
| Qualification Status | Not Qualified |
| Package Body Material | PLASTIC/EPOXY |
| Output Characteristics | 3-STATE |
| Package Equivalence Code | TQFP32,.35SQ,32 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Supply Voltage-Max (Vsup) (V) | 3.6 |
| Supply Voltage-Min (Vsup) (V) | 3 |
| Supply Voltage-Nom (Vsup) (V) | 3.3 |
| Moisture Sensitivity Level | 3 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Intel Corporation EPC2TI32N in the documentation section.
FPGA - Configuration Memory IC - Ser. Config Mem Flash 1.6Mb 10 MHz
As part of the category Semiconductors and subcategory Semiconductors, EPC2TI32N optimizes energy distribution in electronic devices. Its FPGA - Configuration Memory IC - Ser. Config Mem Flash 1.6Mb 10 MHz allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, EPC2TI32N ensures stable output voltage even when the load changes. Its FPGA - Configuration Memory IC - Ser. Config Mem Flash 1.6Mb 10 MHz makes it a reliable element in multi-level power systems.
