TPS73733DCQR
Availability
Design risk
Price trend
Lead time

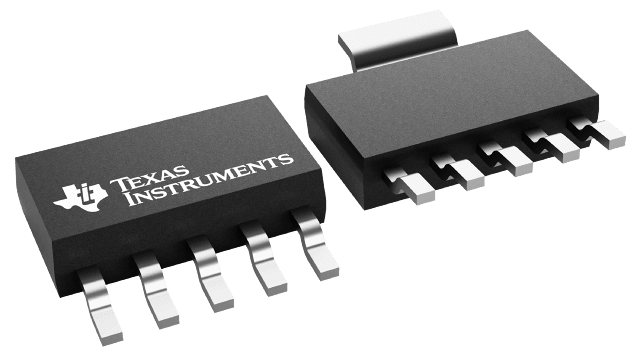

1-A, ultra-low-dropout voltage regulator with reverse current protection & enable 6-SOT-223 -40 to 125
| Technology | BICMOS |
| Width (mm) | 3.5 |
| Length (mm) | 6.5 |
| JESD-30 Code | R-PDSO-G6 |
| Package Code | SOP |
| Adjustability | FIXED |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e3 |
| Packing Method | TR, 13 INCH |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR |
| Terminal Finish | Matte Tin (Sn) |
| DLA Qualification | Not Qualified |
| Number of Outputs | 1 |
| Terminal Position | DUAL |
| Number of Functions | 1 |
| Number of Terminals | 6 |
| Terminal Pitch (mm) | 1.27 |
| Input Voltage-Max (V) | 5.5 |
| Input Voltage-Min (V) | 3.8 |
| Package Body Material | PLASTIC/EPOXY |
| Seated Height-Max (mm) | 1.8 |
| Line Regulation-Max (V) | 0.000560000000000 |
| Load Regulation-Max (V) | 0.065900000000000 |
| Output Current1-Max (A) | 1.0000 |
| Output Voltage1-Max (V) | 3.3990 |
| Output Voltage1-Min (V) | 3.2010 |
| Output Voltage1-Nom (V) | 3.3000 |
| Dropout Voltage1-Max (V) | 0.5000 |
| Dropout Voltage1-Nom (V) | 0.130000000000000 |
| Package Equivalence Code | SOT-223-5 |
| Voltage Tolerance-Max (%) | 3 |
| Moisture Sensitivity Level | 2 |
| Peak Reflow Temperature (Cel) | 260 |
| Input Voltage Absolute-Max (V) | 6.000000000000000 |
| Operating Temperature TJ-Max (Cel) | 125 |
| Operating Temperature TJ-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Texas Instruments Incorporated TPS73733DCQR in the documentation section.
1-A, ultra-low-dropout voltage regulator with reverse current protection & enable 6-SOT-223 -40 to 125
As part of the category Semiconductors and subcategory Semiconductors, TPS73733DCQR optimizes energy distribution in electronic devices. Its 1-A, ultra-low-dropout voltage regulator with reverse current protection & enable 6-SOT-223 -40 to 125 allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, TPS73733DCQR ensures stable output voltage even when the load changes. Its 1-A, ultra-low-dropout voltage regulator with reverse current protection & enable 6-SOT-223 -40 to 125 makes it a reliable element in multi-level power systems.
