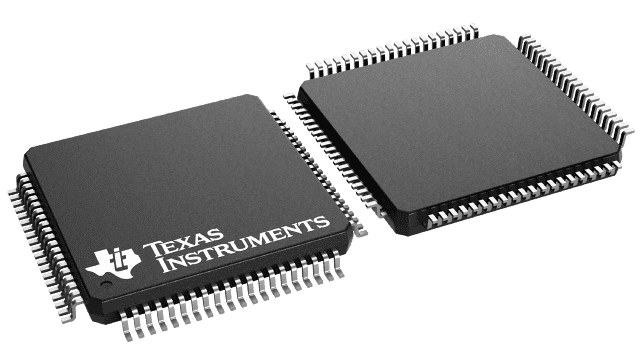

MSP430F5418AIPNR
Availability
Design risk
Price trend
Lead time
25-MHz MCU with 128-KB Flash, 16-KB SRAM, 12-bit ADC, DMA, UART/SPI/I2C, timer, HW multiplier 80-LQFP -40 to 85
| Format | FIXED POINT |
| Bit Size | 16 |
| CPU Family | MSP430 |
| Technology | CMOS |
| Width (mm) | 12 |
| Length (mm) | 12 |
| Peripherals | "BOD, CRC, DMA(3), RTC, TIMER(15), WDT" |
| RAM (words) | 16 |
| Speed (MHz) | 25 |
| ADC Channels | YES |
| Connectivity | "I2C, IRDA, SCI(3), SPI, UART" |
| DAC Channels | NO |
| DMA Channels | YES |
| JESD-30 Code | S-PQFP-G80 |
| PWM Channels | YES |
| Package Code | LFQFP |
| Boundary Scan | YES |
| Package Shape | SQUARE |
| Package Style (Meter) | FLATPACK, LOW PROFILE, FINE PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| A/D Converters | 16-Ch 12-Bit |
| J-STD-609 Code | e4 |
| Low Power Mode | YES |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Integrated Cache | NO |
| Number of Timers | 15 |
| Address Bus Width | 0 |
| DLA Qualification | Not Qualified |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | QUAD |
| Additional Feature | ITS ALSO OPERATES MINIMUM 1.8V AT 12MHZ |
| Number of I/O Lines | 67 |
| Number of Terminals | 80 |
| Program Memory Type | FLASH |
| Terminal Pitch (mm) | 0.5 |
| Data RAM Size (bytes) | 16384 |
| Number of Serial I/Os | 3 |
| Package Body Material | PLASTIC/EPOXY |
| Number of DMA Channels | 3 |
| On Chip Data RAM Width | 8 |
| Seated Height-Max (mm) | 1.6 |
| Supply Voltage-Max (V) | 3.6 |
| Supply Voltage-Min (V) | 3 |
| Supply Voltage-Nom (V) | 3 |
| External Data Bus Width | 0 |
| Supply Current-Max (mA) | 9.6 |
| Data EEPROM Size (bytes) | 0 |
| Package Equivalence Code | QFP80,.55SQ,20 |
| Clock Frequency-Max (MHz) | 18 |
| Moisture Sensitivity Level | 3 |
| Program Memory Size (words) | 131072 |
| Program Memory Width (bits) | 8 |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
| Number of External Interrupts | 0 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
